| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_080T02_9000006242_46634cztM0_level2.fits | modeM0/AS1A13_080T02_9000006242_46634cztM0_level2_quad_clean.evt |
| Size (bytes) | 29,367,360 | 5,840,640 |
| Size | 28.0 MB | 5.6 MB |
| Events in quadrant A | 334,846 | 38,642 |
| Events in quadrant B | 158,930 | 40,147 |
| Events in quadrant C | 140,396 | 36,845 |
| Events in quadrant D | 423,760 | 30,533 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1263 | 0 |
| B | 0 | 683 | 0 |
| C | 0 | 662 | 0 |
| D | 0 | 1488 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 328 | 1 | 0.304878% |
| B | 329 | 1 | 0.303951% |
| C | 329 | 1 | 0.303951% |
| D | 329 | 50 | 15.197568% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 328 | 328 | 0 | 0 | 0.00% | 0.00% |  |
| B | 329 | 329 | 0 | 0 | 0.00% | 0.00% |  |
| C | 329 | 329 | 0 | 0 | 0.00% | 0.00% |  |
| D | 329 | 329 | 61 | 61 | 18.54% | 18.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 188050 | 19437.54 | 36 | 36 | 9.7 |
| A | 0 | 243 | 2026 | 205.73 | 36 | 36 | 9.7 |
| A | 13 | 254 | 599 | 58.2 | 36 | 36 | 9.7 |
| B | 5 | 172 | 5306 | 546.36 | 37 | 36 | 9.6 |
| B | 4 | 171 | 2561 | 261.78 | 37 | 36 | 9.6 |
| B | 12 | 111 | 882 | 87.71 | 37 | 36 | 9.6 |
| C | 14 | 254 | 1509 | 143.99 | 35 | 35 | 10.2 |
| C | 12 | 2 | 829 | 77.56 | 35 | 35 | 10.2 |
| C | 15 | 208 | 255 | 21.49 | 35 | 35 | 10.2 |
| D | 1 | 52 | 250686 | 23706.39 | 33 | 32 | 10.6 |
| D | 12 | 128 | 22587 | 2133.21 | 33 | 32 | 10.6 |
| D | 8 | 176 | 7621 | 717.75 | 33 | 32 | 10.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

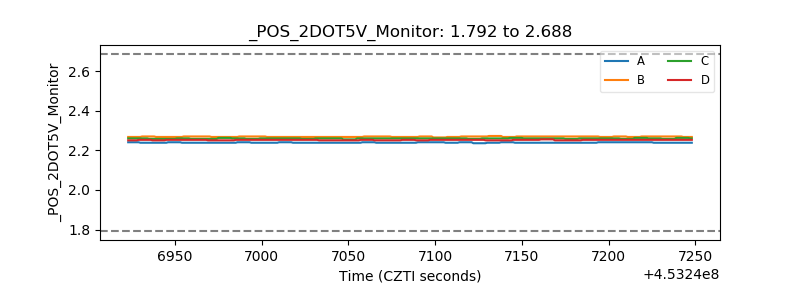

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
