| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T16_9000006244_46634cztM0_level2.fits | modeM0/AS1A13_092T16_9000006244_46634cztM0_level2_quad_clean.evt |
| Size (bytes) | 768,936,960 | 160,303,680 |
| Size | 733.3 MB | 152.9 MB |
| Events in quadrant A | 9,247,984 | 1,064,572 |
| Events in quadrant B | 6,312,891 | 1,070,569 |
| Events in quadrant C | 4,505,864 | 1,077,029 |
| Events in quadrant D | 7,630,604 | 955,131 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 202 | 0 |
| B | 0 | 202 | 0 |
| C | 0 | 202 | 0 |
| D | 0 | 202 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33717 | 2 |
| B | 0 | 25596 | 2 |
| C | 0 | 20716 | 2 |
| D | 0 | 29582 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9907 | 275 | 2.775815% |
| B | 9907 | 576 | 5.814071% |
| C | 9907 | 55 | 0.555163% |
| D | 9906 | 487 | 4.916212% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12247 | 9909 | 75 | 75 | 0.61% | 0.76% |  |
| B | 12247 | 9909 | 334 | 334 | 2.73% | 3.37% |  |
| C | 12247 | 9909 | 26 | 26 | 0.21% | 0.26% |  |
| D | 12246 | 9907 | 354 | 354 | 2.89% | 3.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4875990 | 21405.09 | 1099 | 1077 | 227.7 |
| A | 15 | 235 | 41400 | 177.05 | 1099 | 1077 | 227.7 |
| A | 9 | 191 | 37304 | 159.07 | 1099 | 1077 | 227.7 |
| B | 5 | 32 | 772659 | 3648.65 | 1087 | 1054 | 211.5 |
| B | 15 | 201 | 764419 | 3609.68 | 1087 | 1054 | 211.5 |
| B | 10 | 246 | 176466 | 829.46 | 1087 | 1054 | 211.5 |
| C | 14 | 254 | 143941 | 564.36 | 1083 | 1091 | 253.1 |
| C | 12 | 249 | 48051 | 185.53 | 1083 | 1091 | 253.1 |
| C | 15 | 208 | 40867 | 157.14 | 1083 | 1091 | 253.1 |
| D | 1 | 52 | 1387453 | 5228.66 | 1062 | 1029 | 265.2 |
| D | 12 | 128 | 735734 | 2770.81 | 1062 | 1029 | 265.2 |
| D | 13 | 249 | 721470 | 2717.02 | 1062 | 1029 | 265.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

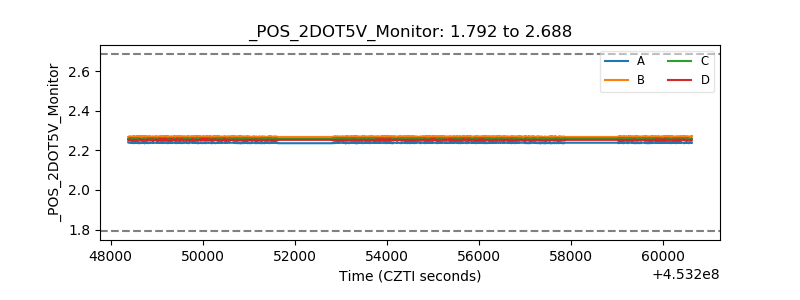

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
