| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T16_9000006244_46643cztM0_level2.fits | modeM0/AS1A13_092T16_9000006244_46643cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,233,195,840 | 273,611,520 |
| Size | 1.1 GB | 260.9 MB |
| Events in quadrant A | 16,258,007 | 1,825,559 |
| Events in quadrant B | 8,745,316 | 1,838,333 |
| Events in quadrant C | 7,918,848 | 1,800,909 |
| Events in quadrant D | 11,409,633 | 1,643,587 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 348 | 0 |
| B | 0 | 348 | 0 |
| C | 0 | 348 | 0 |
| D | 0 | 348 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 59811 | 3 |
| B | 0 | 38139 | 3 |
| C | 0 | 36357 | 4 |
| D | 0 | 45895 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17048 | 587 | 3.443219% |
| B | 17048 | 320 | 1.877053% |
| C | 17048 | 84 | 0.492726% |
| D | 17048 | 698 | 4.094322% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18788 | 17051 | 99 | 99 | 0.53% | 0.58% |  |
| B | 18788 | 17051 | 84 | 84 | 0.45% | 0.49% |  |
| C | 18788 | 17051 | 27 | 27 | 0.14% | 0.16% |  |
| D | 18788 | 17051 | 556 | 556 | 2.96% | 3.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8595393 | 22172.27 | 1872 | 1830 | 387.6 |
| A | 15 | 235 | 273832 | 701.79 | 1872 | 1830 | 387.6 |
| A | 13 | 6 | 45291 | 112.13 | 1872 | 1830 | 387.6 |
| B | 0 | 189 | 426168 | 1153.21 | 1859 | 1803 | 368.0 |
| B | 5 | 32 | 242181 | 653.22 | 1859 | 1803 | 368.0 |
| B | 0 | 198 | 173013 | 465.26 | 1859 | 1803 | 368.0 |
| C | 14 | 254 | 183464 | 418.87 | 1836 | 1845 | 433.6 |
| C | 15 | 208 | 154492 | 352.05 | 1836 | 1845 | 433.6 |
| C | 9 | 54 | 140819 | 320.52 | 1836 | 1845 | 433.6 |
| D | 1 | 52 | 1285532 | 2786.58 | 1828 | 1775 | 460.7 |
| D | 12 | 233 | 959884 | 2079.72 | 1828 | 1775 | 460.7 |
| D | 11 | 224 | 611317 | 1323.1 | 1828 | 1775 | 460.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

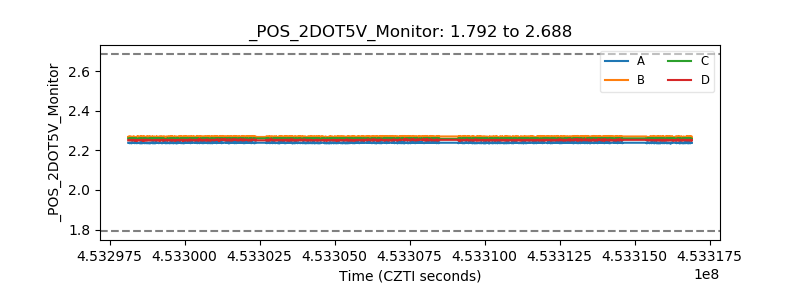

| +2.5 Volts monitor |  |

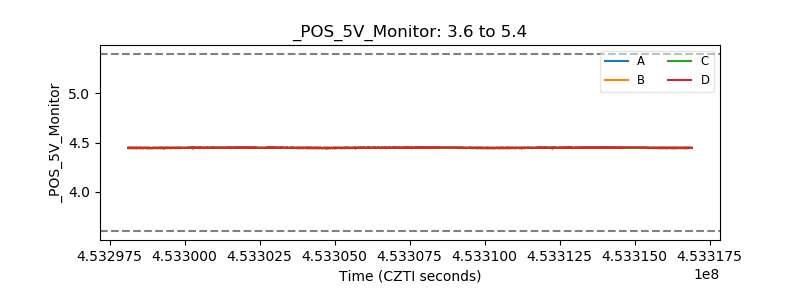

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
