| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T16_9000006244_46644cztM0_level2.fits | modeM0/AS1A13_092T16_9000006244_46644cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,621,958,400 | 363,191,040 |
| Size | 1.5 GB | 346.4 MB |
| Events in quadrant A | 21,449,083 | 2,427,454 |
| Events in quadrant B | 11,533,849 | 2,460,154 |
| Events in quadrant C | 10,276,485 | 2,385,238 |
| Events in quadrant D | 15,049,552 | 2,180,433 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 456 | 0 |
| B | 0 | 456 | 0 |
| C | 0 | 456 | 0 |
| D | 0 | 456 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78638 | 8 |
| B | 0 | 50248 | 4 |
| C | 0 | 47582 | 10 |
| D | 0 | 60529 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 22417 | 790 | 3.524111% |
| B | 22418 | 381 | 1.699527% |
| C | 22416 | 105 | 0.468415% |
| D | 22419 | 947 | 4.224096% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25108 | 22422 | 182 | 182 | 0.72% | 0.81% |  |
| B | 25108 | 22422 | 98 | 98 | 0.39% | 0.44% |  |
| C | 25109 | 22421 | 34 | 34 | 0.14% | 0.15% |  |
| D | 25109 | 22423 | 742 | 742 | 2.96% | 3.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 11389156 | 22588.43 | 2447 | 2397 | 504.1 |
| A | 15 | 235 | 280407 | 551.5 | 2447 | 2397 | 504.1 |
| A | 13 | 248 | 103240 | 200.05 | 2447 | 2397 | 504.1 |
| B | 0 | 189 | 530290 | 1116.24 | 2435 | 2361 | 473.0 |
| B | 5 | 32 | 273791 | 573.9 | 2435 | 2361 | 473.0 |
| B | 0 | 198 | 245535 | 514.16 | 2435 | 2361 | 473.0 |
| C | 14 | 254 | 201274 | 351.01 | 2405 | 2415 | 566.5 |
| C | 15 | 208 | 196495 | 342.57 | 2405 | 2415 | 566.5 |
| C | 9 | 54 | 144724 | 251.19 | 2405 | 2415 | 566.5 |
| D | 1 | 52 | 1650673 | 2718.97 | 2392 | 2323 | 606.2 |
| D | 12 | 233 | 1207118 | 1987.32 | 2392 | 2323 | 606.2 |
| D | 12 | 128 | 704892 | 1158.9 | 2392 | 2323 | 606.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

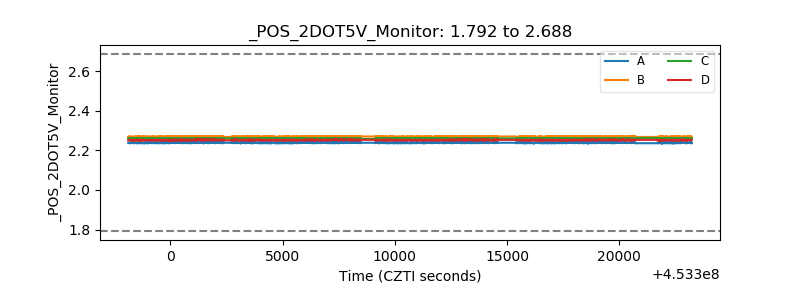

| +2.5 Volts monitor |  |

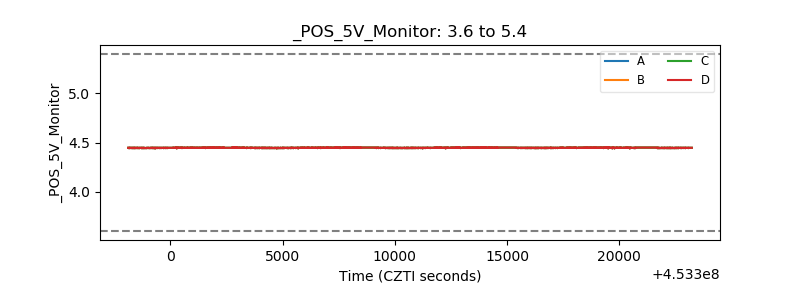

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
