| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_039T01_9000006246_46648cztM0_level2.fits | modeM0/AS1A13_039T01_9000006246_46648cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,244,480 | 106,136,640 |
| Size | 451.3 MB | 101.2 MB |
| Events in quadrant A | 6,392,772 | 694,115 |
| Events in quadrant B | 4,208,968 | 724,932 |
| Events in quadrant C | 2,815,816 | 711,112 |
| Events in quadrant D | 3,600,512 | 634,420 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23322 | 12 |
| B | 0 | 16834 | 2 |
| C | 0 | 13342 | 8 |
| D | 0 | 15516 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6438 | 234 | 3.634669% |
| B | 6443 | 262 | 4.066429% |
| C | 6440 | 34 | 0.527950% |
| D | 6443 | 149 | 2.312587% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8797 | 6443 | 118 | 118 | 1.34% | 1.83% |  |
| B | 8798 | 6445 | 156 | 156 | 1.77% | 2.42% |  |
| C | 8798 | 6444 | 16 | 16 | 0.18% | 0.25% |  |
| D | 8798 | 6445 | 135 | 135 | 1.53% | 2.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3472499 | 24810.91 | 678 | 664 | 139.9 |
| A | 0 | 247 | 191808 | 1365.98 | 678 | 664 | 139.9 |
| A | 13 | 248 | 34853 | 244.33 | 678 | 664 | 139.9 |
| B | 5 | 255 | 656516 | 5022.5 | 684 | 664 | 130.6 |
| B | 0 | 189 | 257870 | 1969.68 | 684 | 664 | 130.6 |
| B | 5 | 32 | 208453 | 1591.24 | 684 | 664 | 130.6 |
| C | 12 | 250 | 48646 | 302.4 | 681 | 686 | 158.6 |
| C | 12 | 249 | 46052 | 286.04 | 681 | 686 | 158.6 |
| C | 14 | 254 | 28404 | 174.77 | 681 | 686 | 158.6 |
| D | 13 | 249 | 401937 | 2348.41 | 669 | 645 | 170.9 |
| D | 1 | 52 | 205653 | 1199.73 | 669 | 645 | 170.9 |
| D | 12 | 128 | 109199 | 635.27 | 669 | 645 | 170.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

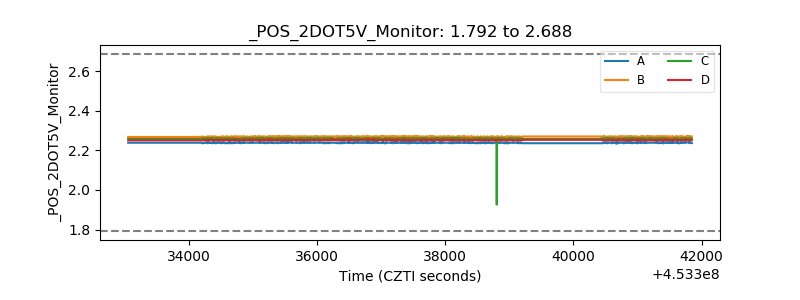

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
