| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T18_9000006248_46673cztM0_level2.fits | modeM0/AS1A13_092T18_9000006248_46673cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,071,680 | 99,590,400 |
| Size | 485.5 MB | 95.0 MB |
| Events in quadrant A | 6,707,151 | 645,171 |
| Events in quadrant B | 3,954,930 | 678,593 |
| Events in quadrant C | 2,806,918 | 667,460 |
| Events in quadrant D | 4,878,382 | 577,050 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24068 | 1 |
| B | 0 | 16155 | 6 |
| C | 0 | 13179 | 1 |
| D | 0 | 19011 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6407 | 360 | 5.618854% |
| B | 6406 | 194 | 3.028411% |
| C | 6406 | 22 | 0.343428% |
| D | 6406 | 484 | 7.555417% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7392 | 6408 | 218 | 218 | 2.95% | 3.40% |  |
| B | 7391 | 6407 | 78 | 78 | 1.06% | 1.22% |  |
| C | 7391 | 6407 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7391 | 6407 | 365 | 365 | 4.94% | 5.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3521634 | 25269.05 | 672 | 656 | 139.3 |
| A | 9 | 191 | 438946 | 3145.48 | 672 | 656 | 139.3 |
| A | 13 | 248 | 65617 | 466.21 | 672 | 656 | 139.3 |
| B | 4 | 171 | 559767 | 4175.93 | 681 | 660 | 133.9 |
| B | 0 | 189 | 284150 | 2117.36 | 681 | 660 | 133.9 |
| B | 5 | 255 | 134177 | 997.23 | 681 | 660 | 133.9 |
| C | 3 | 233 | 57219 | 351.18 | 680 | 682 | 161.0 |
| C | 12 | 2 | 31505 | 191.46 | 680 | 682 | 161.0 |
| C | 1 | 3 | 17112 | 102.05 | 680 | 682 | 161.0 |
| D | 8 | 129 | 675310 | 4144.56 | 651 | 631 | 162.8 |
| D | 1 | 52 | 434016 | 2662.29 | 651 | 631 | 162.8 |
| D | 5 | 171 | 309456 | 1897.12 | 651 | 631 | 162.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

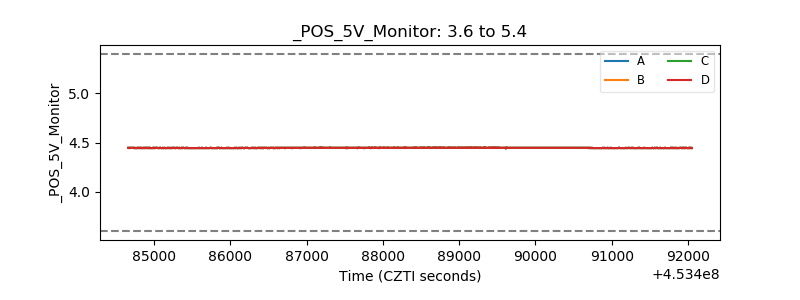

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
