| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T20_9000006254_46687cztM0_level2.fits | modeM0/AS1A13_092T20_9000006254_46687cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,548,800 | 105,436,800 |
| Size | 474.5 MB | 100.6 MB |
| Events in quadrant A | 6,121,769 | 728,702 |
| Events in quadrant B | 4,296,662 | 699,317 |
| Events in quadrant C | 2,864,501 | 681,212 |
| Events in quadrant D | 4,655,368 | 651,419 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22449 | 1 |
| B | 0 | 17132 | 1 |
| C | 0 | 13247 | 1 |
| D | 0 | 18189 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6184 | 182 | 2.943079% |
| B | 6185 | 291 | 4.704931% |
| C | 6185 | 40 | 0.646726% |
| D | 6185 | 172 | 2.780922% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7094 | 6185 | 30 | 30 | 0.42% | 0.49% |  |
| B | 7094 | 6185 | 176 | 176 | 2.48% | 2.85% |  |
| C | 7095 | 6186 | 22 | 22 | 0.31% | 0.36% |  |
| D | 7095 | 6186 | 126 | 126 | 1.78% | 2.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3308438 | 22753.97 | 694 | 680 | 145.4 |
| A | 15 | 254 | 60750 | 413.22 | 694 | 680 | 145.4 |
| A | 15 | 235 | 25377 | 169.89 | 694 | 680 | 145.4 |
| B | 10 | 128 | 1226918 | 9164.62 | 673 | 651 | 133.8 |
| B | 0 | 198 | 152316 | 1133.48 | 673 | 651 | 133.8 |
| B | 0 | 190 | 89841 | 666.57 | 673 | 651 | 133.8 |
| C | 12 | 2 | 144933 | 908.3 | 669 | 673 | 158.8 |
| C | 5 | 250 | 48928 | 303.83 | 669 | 673 | 158.8 |
| C | 1 | 241 | 22306 | 136.21 | 669 | 673 | 158.8 |
| D | 1 | 52 | 1258996 | 7175.09 | 680 | 658 | 175.4 |
| D | 8 | 176 | 294667 | 1676.45 | 680 | 658 | 175.4 |
| D | 11 | 192 | 140939 | 799.89 | 680 | 658 | 175.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

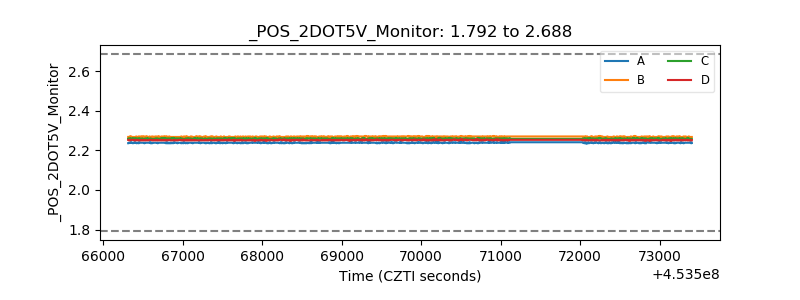

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
