| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T20_9000006254_46693cztM0_level2.fits | modeM0/AS1A13_092T20_9000006254_46693cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,511,360 | 104,636,160 |
| Size | 483.0 MB | 99.8 MB |
| Events in quadrant A | 6,337,384 | 691,745 |
| Events in quadrant B | 3,665,378 | 719,605 |
| Events in quadrant C | 3,336,494 | 695,482 |
| Events in quadrant D | 4,908,322 | 609,809 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22876 | 2 |
| B | 0 | 15366 | 3 |
| C | 0 | 14667 | 2 |
| D | 0 | 19070 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6473 | 221 | 3.414182% |
| B | 6472 | 157 | 2.425834% |
| C | 6473 | 122 | 1.884752% |
| D | 6473 | 413 | 6.380349% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7578 | 6474 | 63 | 63 | 0.83% | 0.97% |  |
| B | 7577 | 6473 | 45 | 45 | 0.59% | 0.70% |  |
| C | 7578 | 6474 | 104 | 104 | 1.37% | 1.61% |  |
| D | 7578 | 6474 | 340 | 340 | 4.49% | 5.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3385929 | 23041.07 | 711 | 698 | 146.9 |
| A | 9 | 191 | 53999 | 362.79 | 711 | 698 | 146.9 |
| A | 15 | 254 | 40607 | 271.63 | 711 | 698 | 146.9 |
| B | 4 | 171 | 433142 | 3068.94 | 719 | 698 | 140.9 |
| B | 0 | 198 | 114482 | 807.5 | 719 | 698 | 140.9 |
| B | 0 | 190 | 99745 | 702.91 | 719 | 698 | 140.9 |
| C | 9 | 54 | 431835 | 2604.3 | 708 | 715 | 165.5 |
| C | 14 | 254 | 34821 | 206.02 | 708 | 715 | 165.5 |
| C | 12 | 2 | 33208 | 196.28 | 708 | 715 | 165.5 |
| D | 1 | 52 | 1491721 | 8613.88 | 682 | 660 | 173.1 |
| D | 13 | 249 | 352230 | 2031.02 | 682 | 660 | 173.1 |
| D | 2 | 249 | 93382 | 535.66 | 682 | 660 | 173.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

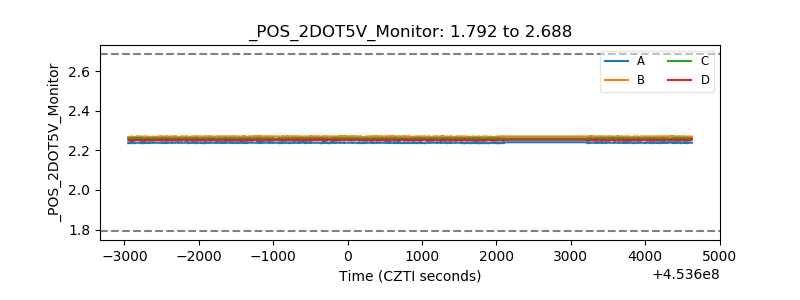

| +2.5 Volts monitor |  |

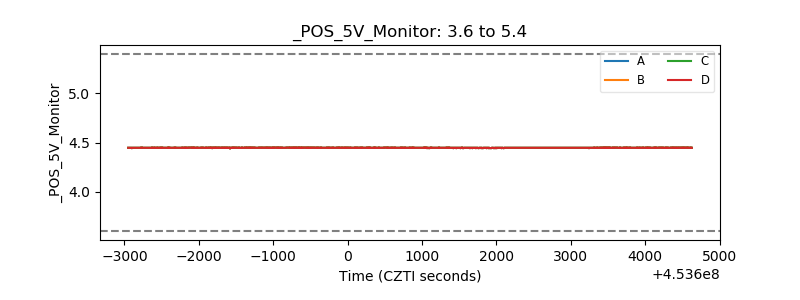

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
