| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T20_9000006254_46694cztM0_level2.fits | modeM0/AS1A13_092T20_9000006254_46694cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,680,652,800 | 352,192,320 |
| Size | 1.6 GB | 335.9 MB |
| Events in quadrant A | 20,804,674 | 2,333,610 |
| Events in quadrant B | 12,627,333 | 2,430,337 |
| Events in quadrant C | 10,457,798 | 2,355,209 |
| Events in quadrant D | 16,628,150 | 2,032,385 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 450 | 0 |
| B | 0 | 450 | 0 |
| C | 0 | 450 | 0 |
| D | 0 | 450 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 75660 | 4 |
| B | 0 | 52763 | 4 |
| C | 0 | 47475 | 5 |
| D | 0 | 65103 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 21957 | 674 | 3.069636% |
| B | 21957 | 524 | 2.386483% |
| C | 21956 | 251 | 1.143195% |
| D | 21957 | 1628 | 7.414492% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26422 | 21961 | 212 | 212 | 0.80% | 0.97% |  |
| B | 26422 | 21961 | 193 | 193 | 0.73% | 0.88% |  |
| C | 26421 | 21960 | 182 | 182 | 0.69% | 0.83% |  |
| D | 26422 | 21961 | 1279 | 1279 | 4.84% | 5.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10936625 | 22192.43 | 2405 | 2357 | 492.7 |
| A | 15 | 254 | 175436 | 351.28 | 2405 | 2357 | 492.7 |
| A | 13 | 248 | 168427 | 337.06 | 2405 | 2357 | 492.7 |
| B | 4 | 171 | 1889779 | 4039.97 | 2427 | 2351 | 467.2 |
| B | 0 | 198 | 405917 | 863.82 | 2427 | 2351 | 467.2 |
| B | 0 | 190 | 328766 | 698.68 | 2427 | 2351 | 467.2 |
| C | 9 | 54 | 457714 | 815.08 | 2389 | 2409 | 558.6 |
| C | 14 | 254 | 347643 | 618.03 | 2389 | 2409 | 558.6 |
| C | 12 | 2 | 174493 | 308.06 | 2389 | 2409 | 558.6 |
| D | 1 | 52 | 4618740 | 7910.22 | 2289 | 2218 | 583.6 |
| D | 13 | 249 | 1598418 | 2735.02 | 2289 | 2218 | 583.6 |
| D | 12 | 128 | 523632 | 893.42 | 2289 | 2218 | 583.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

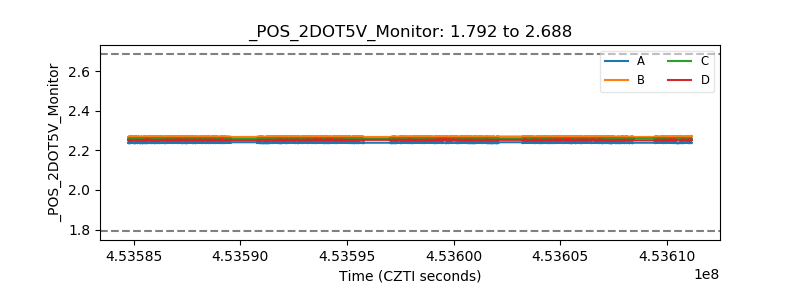

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
