| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006256_46705cztM0_level2.fits | modeM0/AS1A13_037T01_9000006256_46705cztM0_level2_quad_clean.evt |
| Size (bytes) | 428,938,560 | 102,015,360 |
| Size | 409.1 MB | 97.3 MB |
| Events in quadrant A | 6,038,378 | 670,841 |
| Events in quadrant B | 3,163,079 | 706,322 |
| Events in quadrant C | 2,790,969 | 673,060 |
| Events in quadrant D | 3,419,840 | 619,757 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21888 | 1 |
| B | 0 | 13591 | 1 |
| C | 0 | 12502 | 1 |
| D | 0 | 14349 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5998 | 229 | 3.817939% |
| B | 5998 | 71 | 1.183728% |
| C | 5999 | 35 | 0.583431% |
| D | 5999 | 77 | 1.283547% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7198 | 5999 | 68 | 68 | 0.94% | 1.13% |  |
| B | 7198 | 5999 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7199 | 6000 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7199 | 5999 | 34 | 34 | 0.47% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3235123 | 22792.31 | 683 | 669 | 141.9 |
| A | 15 | 254 | 70978 | 495.45 | 683 | 669 | 141.9 |
| A | 9 | 191 | 45186 | 313.7 | 683 | 669 | 141.9 |
| B | 4 | 171 | 180724 | 1328.58 | 691 | 672 | 135.5 |
| B | 0 | 190 | 56069 | 408.77 | 691 | 672 | 135.5 |
| B | 0 | 198 | 37728 | 273.43 | 691 | 672 | 135.5 |
| C | 14 | 254 | 96501 | 594.2 | 682 | 685 | 161.3 |
| C | 12 | 249 | 6543 | 36.33 | 682 | 685 | 161.3 |
| C | 1 | 3 | 5832 | 31.92 | 682 | 685 | 161.3 |
| D | 1 | 52 | 430806 | 2500.23 | 681 | 660 | 172.0 |
| D | 13 | 249 | 78953 | 455.08 | 681 | 660 | 172.0 |
| D | 5 | 171 | 39069 | 223.25 | 681 | 660 | 172.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

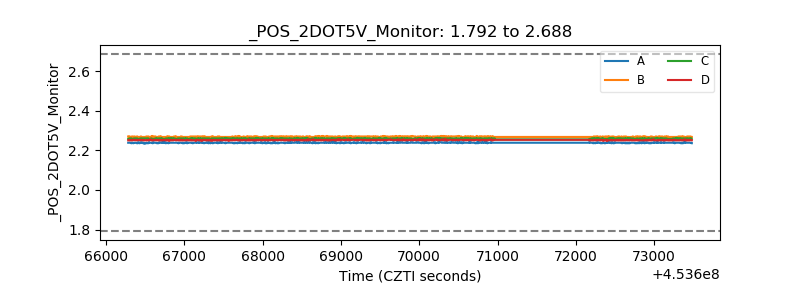

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
