| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006256_46710cztM0_level2.fits | modeM0/AS1A13_037T01_9000006256_46710cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,650,029,760 | 360,745,920 |
| Size | 1.5 GB | 344.0 MB |
| Events in quadrant A | 20,879,025 | 2,374,004 |
| Events in quadrant B | 11,575,453 | 2,503,055 |
| Events in quadrant C | 10,256,121 | 2,405,386 |
| Events in quadrant D | 16,635,320 | 2,096,118 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 82926 | 6169 |
| B | 0 | 54545 | 3823 |
| C | 0 | 52626 | 5046 |
| D | 0 | 70748 | 5392 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 503 | 46 |
| B | 0 | 513 | 57 |
| C | 0 | 503 | 45 |
| D | 0 | 507 | 51 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 69 | 28 |
| B | 0 | 56 | 15 |
| C | 0 | 55 | 14 |
| D | 0 | 62 | 21 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 22376 | 878 | 3.923847% |
| B | 22456 | 515 | 2.293374% |
| C | 22457 | 275 | 1.224562% |
| D | 22438 | 1633 | 7.277832% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 31789 | 22534 | 114 | 114 | 0.36% | 0.51% |  |
| B | 31789 | 22620 | 53 | 53 | 0.17% | 0.23% |  |
| C | 31788 | 22611 | 116 | 116 | 0.36% | 0.51% |  |
| D | 31789 | 22595 | 1310 | 1310 | 4.12% | 5.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10952755 | 21602.32 | 2451 | 2400 | 506.9 |
| A | 9 | 191 | 202558 | 394.86 | 2451 | 2400 | 506.9 |
| A | 13 | 248 | 99064 | 190.69 | 2451 | 2400 | 506.9 |
| B | 4 | 171 | 945946 | 1928.98 | 2490 | 2413 | 489.1 |
| B | 0 | 190 | 174729 | 352.29 | 2490 | 2413 | 489.1 |
| B | 0 | 198 | 170449 | 343.54 | 2490 | 2413 | 489.1 |
| C | 12 | 2 | 390001 | 677.6 | 2448 | 2461 | 571.9 |
| C | 1 | 3 | 106649 | 182.17 | 2448 | 2461 | 571.9 |
| C | 3 | 233 | 103457 | 176.59 | 2448 | 2461 | 571.9 |
| D | 13 | 168 | 3654974 | 6132.94 | 2375 | 2304 | 595.6 |
| D | 1 | 52 | 2024130 | 3394.7 | 2375 | 2304 | 595.6 |
| D | 13 | 249 | 665389 | 1113.34 | 2375 | 2304 | 595.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

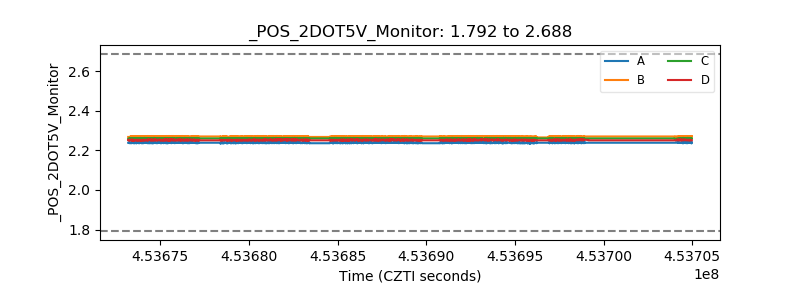

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
