| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T09_9000006258_46722cztM0_level2.fits | modeM0/AS1A13_092T09_9000006258_46722cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,943,680 | 105,955,200 |
| Size | 444.4 MB | 101.0 MB |
| Events in quadrant A | 6,433,694 | 690,179 |
| Events in quadrant B | 3,420,323 | 727,280 |
| Events in quadrant C | 3,028,881 | 704,446 |
| Events in quadrant D | 3,862,724 | 634,910 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23291 | 2 |
| B | 0 | 14704 | 2 |
| C | 0 | 13696 | 2 |
| D | 0 | 16181 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6468 | 295 | 4.560915% |
| B | 6468 | 142 | 2.195424% |
| C | 6468 | 65 | 1.004947% |
| D | 6468 | 175 | 2.705628% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7583 | 6469 | 133 | 133 | 1.75% | 2.06% |  |
| B | 7583 | 6469 | 25 | 25 | 0.33% | 0.39% |  |
| C | 7583 | 6469 | 30 | 30 | 0.40% | 0.46% |  |
| D | 7583 | 6469 | 156 | 156 | 2.06% | 2.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3429407 | 23111.57 | 711 | 694 | 148.4 |
| A | 13 | 248 | 112733 | 755.21 | 711 | 694 | 148.4 |
| A | 9 | 191 | 103569 | 693.44 | 711 | 694 | 148.4 |
| B | 4 | 171 | 384325 | 2713.66 | 724 | 700 | 141.4 |
| B | 3 | 112 | 91227 | 640.36 | 724 | 700 | 141.4 |
| B | 0 | 198 | 20612 | 140.85 | 724 | 700 | 141.4 |
| C | 1 | 3 | 66324 | 390.68 | 710 | 714 | 167.9 |
| C | 9 | 54 | 53389 | 313.66 | 710 | 714 | 167.9 |
| C | 12 | 2 | 48481 | 284.43 | 710 | 714 | 167.9 |
| D | 7 | 96 | 414268 | 2327.41 | 699 | 679 | 177.7 |
| D | 13 | 249 | 341628 | 1918.64 | 699 | 679 | 177.7 |
| D | 1 | 52 | 112314 | 628.21 | 699 | 679 | 177.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

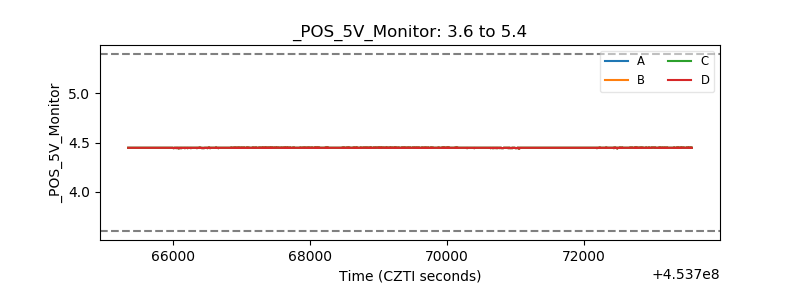

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
