| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T09_9000006258_46726cztM0_level2.fits | modeM0/AS1A13_092T09_9000006258_46726cztM0_level2_quad_clean.evt |
| Size (bytes) | 660,484,800 | 126,472,320 |
| Size | 629.9 MB | 120.6 MB |
| Events in quadrant A | 7,667,832 | 849,982 |
| Events in quadrant B | 4,095,212 | 884,228 |
| Events in quadrant C | 3,682,693 | 857,998 |
| Events in quadrant D | 8,364,332 | 663,894 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28055 | 2 |
| B | 0 | 17842 | 6 |
| C | 0 | 17101 | 0 |
| D | 0 | 30705 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8248 | 169 | 2.048982% |
| B | 8247 | 63 | 0.763914% |
| C | 8249 | 8 | 0.096981% |
| D | 8249 | 1413 | 17.129349% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8248 | 8248 | 74 | 74 | 0.90% | 0.90% |  |
| B | 8249 | 8248 | 6 | 6 | 0.07% | 0.07% |  |
| C | 8249 | 8249 | 12 | 12 | 0.15% | 0.15% |  |
| D | 8249 | 8249 | 1320 | 1320 | 16.00% | 16.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3796921 | 19884.51 | 912 | 891 | 190.9 |
| A | 15 | 235 | 173085 | 901.99 | 912 | 891 | 190.9 |
| A | 14 | 235 | 118018 | 613.54 | 912 | 891 | 190.9 |
| B | 4 | 171 | 199634 | 1071.99 | 917 | 885 | 185.4 |
| B | 3 | 112 | 130175 | 697.35 | 917 | 885 | 185.4 |
| B | 0 | 198 | 59519 | 316.25 | 917 | 885 | 185.4 |
| C | 3 | 233 | 125408 | 582.91 | 902 | 905 | 213.6 |
| C | 14 | 254 | 12437 | 53.99 | 902 | 905 | 213.6 |
| C | 1 | 241 | 8061 | 33.5 | 902 | 905 | 213.6 |
| D | 1 | 52 | 4564915 | 21690.34 | 832 | 805 | 210.4 |
| D | 10 | 246 | 154695 | 731.34 | 832 | 805 | 210.4 |
| D | 13 | 249 | 141911 | 670.59 | 832 | 805 | 210.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

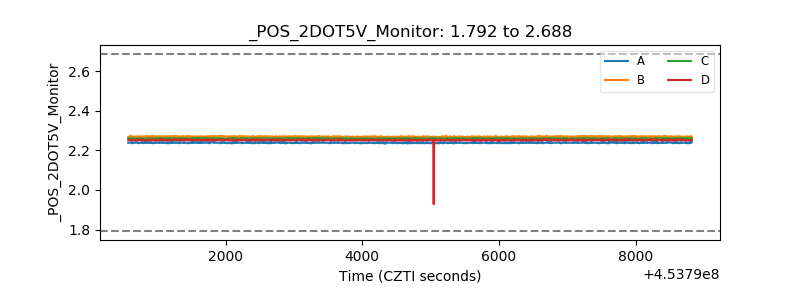

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
