| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T09_9000006258_46727cztM0_level2.fits | modeM0/AS1A13_092T09_9000006258_46727cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,008,000 | 115,896,960 |
| Size | 515.9 MB | 110.5 MB |
| Events in quadrant A | 6,730,341 | 759,559 |
| Events in quadrant B | 3,983,533 | 787,476 |
| Events in quadrant C | 3,355,438 | 770,908 |
| Events in quadrant D | 5,376,854 | 670,360 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25000 | 333 |
| B | 0 | 17070 | 172 |
| C | 0 | 15819 | 139 |
| D | 0 | 21391 | 262 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 151 | 0 |
| C | 0 | 151 | 1 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7448 | 216 | 2.900107% |
| B | 7486 | 202 | 2.698370% |
| C | 7483 | 57 | 0.761727% |
| D | 7484 | 515 | 6.881347% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 7541 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7577 | 7541 | 70 | 70 | 0.92% | 0.93% |  |
| C | 7577 | 7545 | 12 | 12 | 0.16% | 0.16% |  |
| D | 7577 | 7546 | 403 | 403 | 5.32% | 5.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3471948 | 20319.47 | 820 | 803 | 170.8 |
| A | 9 | 191 | 46724 | 268.81 | 820 | 803 | 170.8 |
| A | 0 | 243 | 16100 | 89.55 | 820 | 803 | 170.8 |
| B | 4 | 171 | 442525 | 2706.76 | 820 | 795 | 163.2 |
| B | 3 | 112 | 169950 | 1036.52 | 820 | 795 | 163.2 |
| B | 0 | 198 | 38653 | 231.98 | 820 | 795 | 163.2 |
| C | 3 | 233 | 89199 | 463.1 | 812 | 815 | 190.9 |
| C | 14 | 254 | 40507 | 207.97 | 812 | 815 | 190.9 |
| C | 15 | 208 | 27052 | 137.47 | 812 | 815 | 190.9 |
| D | 1 | 52 | 1433722 | 7076.75 | 797 | 771 | 202.5 |
| D | 13 | 249 | 277035 | 1364.35 | 797 | 771 | 202.5 |
| D | 12 | 128 | 233779 | 1150.73 | 797 | 771 | 202.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

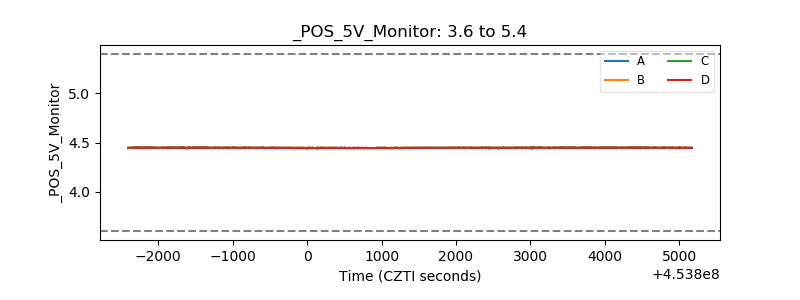

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
