| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_205T01_9000006260_46736cztM0_level2.fits | modeM0/AS1T05_205T01_9000006260_46736cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,654,720 | 106,214,400 |
| Size | 492.7 MB | 101.3 MB |
| Events in quadrant A | 6,404,851 | 690,766 |
| Events in quadrant B | 5,027,921 | 716,472 |
| Events in quadrant C | 3,212,516 | 720,887 |
| Events in quadrant D | 3,981,079 | 639,631 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23030 | 1 |
| B | 0 | 19317 | 4 |
| C | 0 | 14193 | 1 |
| D | 0 | 16419 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6429 | 415 | 6.455125% |
| B | 6428 | 551 | 8.571873% |
| C | 6428 | 55 | 0.855632% |
| D | 6428 | 243 | 3.780336% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7634 | 6430 | 234 | 234 | 3.07% | 3.64% |  |
| B | 7633 | 6429 | 417 | 417 | 5.46% | 6.49% |  |
| C | 7633 | 6429 | 41 | 41 | 0.54% | 0.64% |  |
| D | 7633 | 6429 | 190 | 190 | 2.49% | 2.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3243111 | 22087.68 | 705 | 690 | 146.8 |
| A | 9 | 191 | 226253 | 1536.56 | 705 | 690 | 146.8 |
| A | 13 | 248 | 176769 | 1199.47 | 705 | 690 | 146.8 |
| B | 12 | 16 | 2034917 | 14896.75 | 701 | 679 | 136.6 |
| B | 3 | 112 | 122840 | 894.59 | 701 | 679 | 136.6 |
| B | 0 | 190 | 28056 | 200.48 | 701 | 679 | 136.6 |
| C | 12 | 2 | 176772 | 1049.64 | 710 | 714 | 167.7 |
| C | 3 | 233 | 140902 | 835.79 | 710 | 714 | 167.7 |
| C | 14 | 254 | 122401 | 725.49 | 710 | 714 | 167.7 |
| D | 13 | 249 | 567199 | 3260.04 | 693 | 672 | 173.8 |
| D | 1 | 52 | 480157 | 2759.16 | 693 | 672 | 173.8 |
| D | 12 | 238 | 98456 | 562.69 | 693 | 672 | 173.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

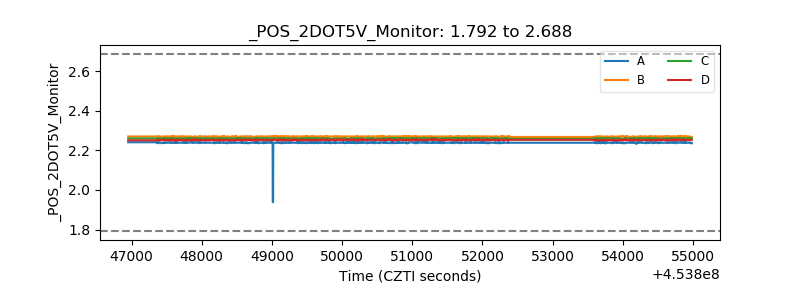

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
