| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_205T01_9000006260_46738cztM0_level2.fits | modeM0/AS1T05_205T01_9000006260_46738cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,344,320 | 114,949,440 |
| Size | 508.6 MB | 109.6 MB |
| Events in quadrant A | 6,757,591 | 753,989 |
| Events in quadrant B | 4,443,157 | 792,194 |
| Events in quadrant C | 3,162,997 | 768,017 |
| Events in quadrant D | 4,816,006 | 661,325 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24705 | 2 |
| B | 0 | 18164 | 2 |
| C | 0 | 14991 | 2 |
| D | 0 | 19758 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7256 | 265 | 3.652150% |
| B | 7256 | 160 | 2.205072% |
| C | 7256 | 25 | 0.344542% |
| D | 7257 | 469 | 6.462726% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9131 | 7258 | 54 | 54 | 0.59% | 0.74% |  |
| B | 9131 | 7258 | 78 | 78 | 0.85% | 1.07% |  |
| C | 9131 | 7258 | 4 | 4 | 0.04% | 0.06% |  |
| D | 9132 | 7259 | 404 | 404 | 4.42% | 5.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3571631 | 21604.87 | 795 | 777 | 165.3 |
| A | 9 | 191 | 86923 | 521.21 | 795 | 777 | 165.3 |
| A | 13 | 254 | 12719 | 72.25 | 795 | 777 | 165.3 |
| B | 3 | 112 | 632770 | 4003.32 | 797 | 771 | 157.9 |
| B | 12 | 3 | 513807 | 3249.76 | 797 | 771 | 157.9 |
| B | 4 | 171 | 49147 | 306.43 | 797 | 771 | 157.9 |
| C | 3 | 233 | 40913 | 212.94 | 793 | 795 | 188.4 |
| C | 14 | 254 | 16630 | 84.05 | 793 | 795 | 188.4 |
| C | 12 | 2 | 10134 | 49.57 | 793 | 795 | 188.4 |
| D | 13 | 249 | 1513929 | 7908.48 | 764 | 741 | 191.3 |
| D | 9 | 19 | 94403 | 489.51 | 764 | 741 | 191.3 |
| D | 7 | 204 | 55468 | 286.02 | 764 | 741 | 191.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

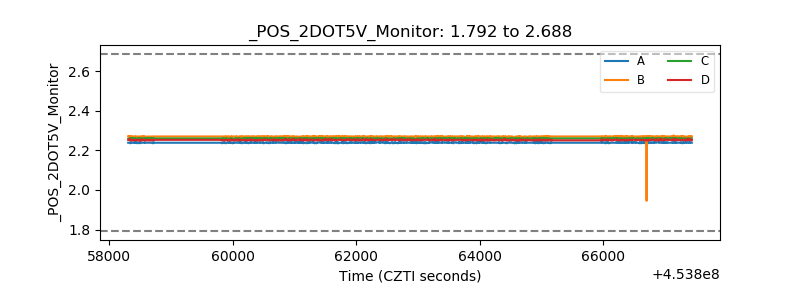

| +2.5 Volts monitor |  |

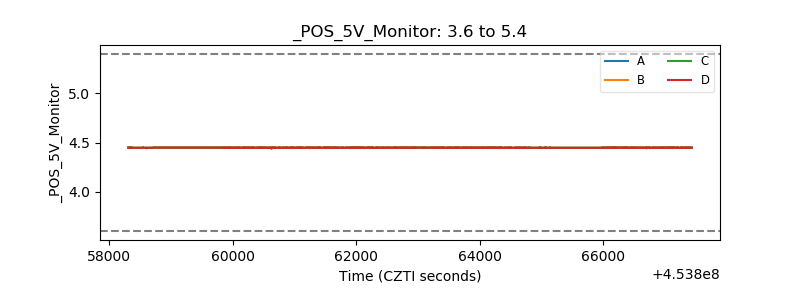

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
