| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_205T01_9000006260_46739cztM0_level2.fits | modeM0/AS1T05_205T01_9000006260_46739cztM0_level2_quad_clean.evt |
| Size (bytes) | 588,769,920 | 130,887,360 |
| Size | 561.5 MB | 124.8 MB |
| Events in quadrant A | 7,673,394 | 855,216 |
| Events in quadrant B | 4,232,943 | 892,947 |
| Events in quadrant C | 3,715,150 | 873,113 |
| Events in quadrant D | 5,526,333 | 762,624 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27936 | 2 |
| B | 0 | 18439 | 2 |
| C | 0 | 17395 | 2 |
| D | 0 | 22524 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8336 | 325 | 3.898752% |
| B | 8335 | 175 | 2.099580% |
| C | 8336 | 28 | 0.335893% |
| D | 8336 | 473 | 5.674184% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9201 | 8339 | 47 | 47 | 0.51% | 0.56% |  |
| B | 9200 | 8338 | 6 | 6 | 0.07% | 0.07% |  |
| C | 9201 | 8339 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9201 | 8339 | 427 | 427 | 4.64% | 5.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3841244 | 19584.23 | 933 | 910 | 196.1 |
| A | 2 | 79 | 147238 | 746.22 | 933 | 910 | 196.1 |
| A | 9 | 191 | 45198 | 225.85 | 933 | 910 | 196.1 |
| B | 3 | 112 | 347931 | 1850.81 | 938 | 907 | 187.5 |
| B | 4 | 171 | 64854 | 341.05 | 938 | 907 | 187.5 |
| B | 5 | 172 | 40101 | 209.04 | 938 | 907 | 187.5 |
| C | 3 | 233 | 29070 | 127.21 | 932 | 935 | 221.2 |
| C | 0 | 207 | 25030 | 108.94 | 932 | 935 | 221.2 |
| C | 14 | 254 | 16009 | 68.16 | 932 | 935 | 221.2 |
| D | 13 | 249 | 1665759 | 7332.22 | 900 | 872 | 227.1 |
| D | 9 | 19 | 84423 | 367.96 | 900 | 872 | 227.1 |
| D | 12 | 128 | 70684 | 307.45 | 900 | 872 | 227.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

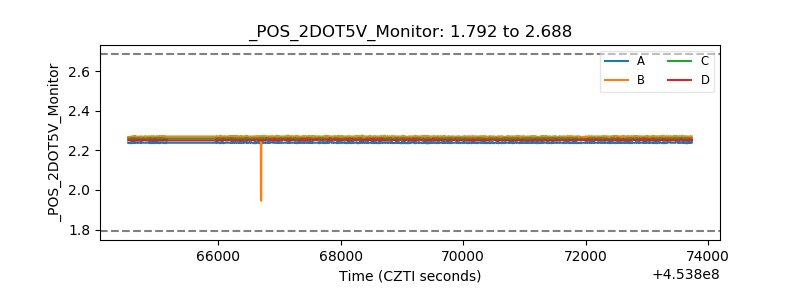

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
