| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_205T01_9000006260_46744cztM0_level2.fits | modeM0/AS1T05_205T01_9000006260_46744cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,214,994,240 | 248,244,480 |
| Size | 1.1 GB | 236.7 MB |
| Events in quadrant A | 14,989,579 | 1,625,755 |
| Events in quadrant B | 9,595,747 | 1,704,174 |
| Events in quadrant C | 7,248,766 | 1,653,836 |
| Events in quadrant D | 11,871,925 | 1,400,578 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 330 | 0 |
| B | 0 | 330 | 0 |
| C | 0 | 330 | 0 |
| D | 0 | 330 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54333 | 1 |
| B | 0 | 39299 | 1 |
| C | 0 | 33971 | 1 |
| D | 0 | 47162 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16413 | 605 | 3.686102% |
| B | 16413 | 533 | 3.247426% |
| C | 16414 | 294 | 1.791154% |
| D | 16414 | 1685 | 10.265627% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16883 | 16413 | 15 | 15 | 0.09% | 0.09% |  |
| B | 16883 | 16413 | 52 | 52 | 0.31% | 0.32% |  |
| C | 16884 | 16414 | 9 | 9 | 0.05% | 0.05% |  |
| D | 16884 | 16414 | 1176 | 1176 | 6.97% | 7.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 7154196 | 19130.45 | 1792 | 1754 | 373.9 |
| A | 9 | 191 | 397998 | 1059.82 | 1792 | 1754 | 373.9 |
| A | 3 | 7 | 342979 | 912.67 | 1792 | 1754 | 373.9 |
| B | 3 | 112 | 1822453 | 5070.91 | 1791 | 1731 | 359.1 |
| B | 4 | 171 | 259126 | 716.87 | 1791 | 1731 | 359.1 |
| B | 0 | 190 | 104027 | 284.91 | 1791 | 1731 | 359.1 |
| C | 3 | 233 | 129249 | 304.95 | 1782 | 1790 | 418.0 |
| C | 14 | 254 | 106692 | 250.98 | 1782 | 1790 | 418.0 |
| C | 12 | 2 | 54896 | 127.06 | 1782 | 1790 | 418.0 |
| D | 13 | 249 | 4543640 | 10530.76 | 1717 | 1657 | 431.3 |
| D | 1 | 52 | 208575 | 479.75 | 1717 | 1657 | 431.3 |
| D | 11 | 192 | 117681 | 269.01 | 1717 | 1657 | 431.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

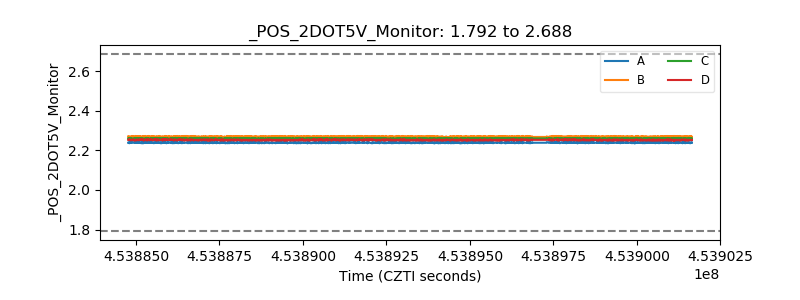

| +2.5 Volts monitor |  |

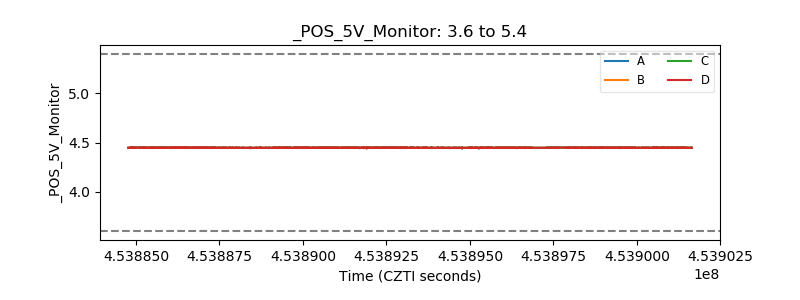

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
