| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T17_9000006262_46747cztM0_level2.fits | modeM0/AS1A13_092T17_9000006262_46747cztM0_level2_quad_clean.evt |
| Size (bytes) | 994,302,720 | 165,847,680 |
| Size | 948.2 MB | 158.2 MB |
| Events in quadrant A | 10,857,895 | 1,123,535 |
| Events in quadrant B | 12,165,528 | 1,045,958 |
| Events in quadrant C | 5,281,076 | 1,125,386 |
| Events in quadrant D | 7,660,972 | 972,355 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 222 | 0 |
| B | 0 | 222 | 0 |
| C | 0 | 222 | 0 |
| D | 0 | 222 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39235 | 8 |
| B | 0 | 43855 | 22 |
| C | 0 | 23893 | 4 |
| D | 0 | 30644 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10887 | 444 | 4.078258% |
| B | 10885 | 1486 | 13.651814% |
| C | 10888 | 141 | 1.295004% |
| D | 10889 | 888 | 8.155019% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12835 | 10889 | 106 | 106 | 0.83% | 0.97% |  |
| B | 12835 | 10888 | 1089 | 1089 | 8.48% | 10.00% |  |
| C | 12835 | 10890 | 84 | 84 | 0.65% | 0.77% |  |
| D | 12835 | 10890 | 690 | 690 | 5.38% | 6.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5667466 | 23027.09 | 1174 | 1151 | 246.1 |
| A | 3 | 7 | 295372 | 1195.67 | 1174 | 1151 | 246.1 |
| A | 9 | 191 | 165539 | 668.05 | 1174 | 1151 | 246.1 |
| B | 3 | 112 | 6560536 | 29302.95 | 1134 | 1099 | 223.8 |
| B | 12 | 3 | 435490 | 1940.55 | 1134 | 1099 | 223.8 |
| B | 4 | 171 | 382115 | 1702.11 | 1134 | 1099 | 223.8 |
| C | 14 | 254 | 568407 | 2060.35 | 1166 | 1176 | 275.3 |
| C | 3 | 233 | 134143 | 482.97 | 1166 | 1176 | 275.3 |
| C | 12 | 2 | 13171 | 43.57 | 1166 | 1176 | 275.3 |
| D | 13 | 249 | 2565238 | 9124.64 | 1119 | 1089 | 281.0 |
| D | 13 | 138 | 214357 | 758.92 | 1119 | 1089 | 281.0 |
| D | 1 | 52 | 197907 | 700.39 | 1119 | 1089 | 281.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

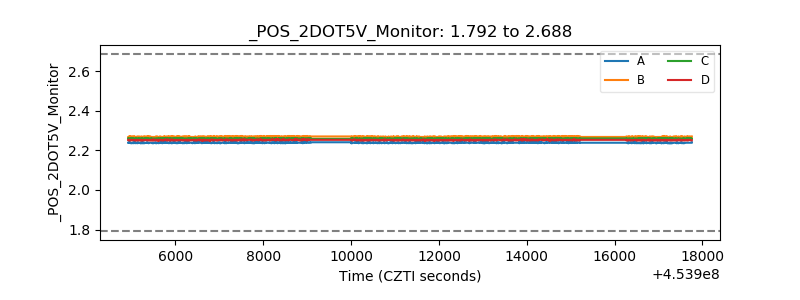

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
