| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T17_9000006262_46748cztM0_level2.fits | modeM0/AS1A13_092T17_9000006262_46748cztM0_level2_quad_clean.evt |
| Size (bytes) | 617,731,200 | 101,246,400 |
| Size | 589.1 MB | 96.6 MB |
| Events in quadrant A | 6,980,468 | 686,835 |
| Events in quadrant B | 8,031,359 | 602,770 |
| Events in quadrant C | 3,175,427 | 703,919 |
| Events in quadrant D | 4,183,529 | 624,994 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25072 | 59 |
| B | 0 | 28417 | 64 |
| C | 0 | 14107 | 18 |
| D | 0 | 17050 | 34 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6404 | 368 | 5.746408% |
| B | 6406 | 1376 | 21.479863% |
| C | 6411 | 67 | 1.045079% |
| D | 6403 | 306 | 4.779010% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7566 | 6417 | 153 | 153 | 2.02% | 2.38% |  |
| B | 7566 | 6414 | 1105 | 1105 | 14.60% | 17.23% |  |
| C | 7566 | 6418 | 54 | 54 | 0.71% | 0.84% |  |
| D | 7565 | 6414 | 258 | 258 | 3.41% | 4.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3624115 | 24519.36 | 710 | 694 | 147.8 |
| A | 3 | 7 | 212805 | 1435.34 | 710 | 694 | 147.8 |
| A | 9 | 191 | 192825 | 1300.13 | 710 | 694 | 147.8 |
| B | 3 | 112 | 4997852 | 37345.54 | 678 | 658 | 133.8 |
| B | 15 | 201 | 63221 | 467.55 | 678 | 658 | 133.8 |
| B | 12 | 3 | 60537 | 447.49 | 678 | 658 | 133.8 |
| C | 14 | 254 | 353644 | 2110.59 | 709 | 715 | 167.2 |
| C | 3 | 233 | 41662 | 244.87 | 709 | 715 | 167.2 |
| C | 12 | 2 | 10097 | 56.11 | 709 | 715 | 167.2 |
| D | 13 | 249 | 1003430 | 5747.13 | 695 | 675 | 174.5 |
| D | 1 | 52 | 117182 | 667.74 | 695 | 675 | 174.5 |
| D | 13 | 138 | 111611 | 635.81 | 695 | 675 | 174.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

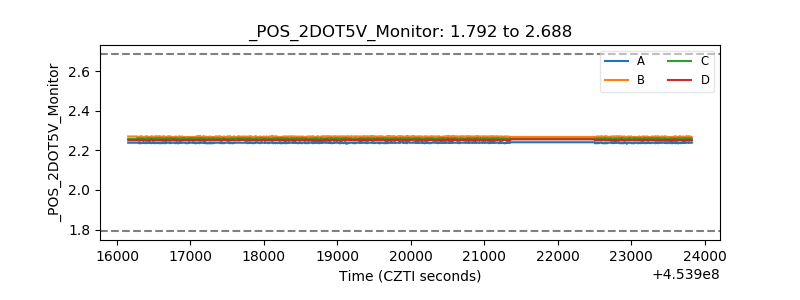

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
