| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_034T01_9000006264_46762cztM0_level2.fits | modeM0/AS1A13_034T01_9000006264_46762cztM0_level2_quad_clean.evt |
| Size (bytes) | 239,993,280 | 49,754,880 |
| Size | 228.9 MB | 47.4 MB |
| Events in quadrant A | 3,319,995 | 323,135 |
| Events in quadrant B | 1,632,524 | 344,778 |
| Events in quadrant C | 1,443,691 | 329,493 |
| Events in quadrant D | 2,247,181 | 290,220 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11960 | 17 |
| B | 0 | 6998 | 1 |
| C | 0 | 6562 | 4 |
| D | 0 | 8763 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 62 | 0 |
| B | 0 | 62 | 0 |
| C | 0 | 62 | 0 |
| D | 0 | 62 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3071 | 178 | 5.796158% |
| B | 3076 | 28 | 0.910273% |
| C | 3074 | 20 | 0.650618% |
| D | 3076 | 181 | 5.884265% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3076 | 3075 | 77 | 77 | 2.50% | 2.50% |  |
| B | 3076 | 3076 | 11 | 11 | 0.36% | 0.36% |  |
| C | 3076 | 3075 | 17 | 17 | 0.55% | 0.55% |  |
| D | 3076 | 3076 | 172 | 172 | 5.59% | 5.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1712448 | 24189.04 | 329 | 321 | 70.8 |
| A | 9 | 191 | 218763 | 3086.16 | 329 | 321 | 70.8 |
| A | 13 | 248 | 82590 | 1162.3 | 329 | 321 | 70.8 |
| B | 3 | 112 | 115981 | 1729.3 | 335 | 326 | 66.9 |
| B | 0 | 183 | 83324 | 1241.01 | 335 | 326 | 66.9 |
| B | 0 | 198 | 56731 | 843.38 | 335 | 326 | 66.9 |
| C | 15 | 208 | 78848 | 1020.83 | 324 | 325 | 76.9 |
| C | 14 | 254 | 71213 | 921.57 | 324 | 325 | 76.9 |
| C | 3 | 233 | 26269 | 337.28 | 324 | 325 | 76.9 |
| D | 1 | 52 | 377074 | 4657.84 | 316 | 305 | 80.9 |
| D | 13 | 249 | 335213 | 4140.33 | 316 | 305 | 80.9 |
| D | 15 | 217 | 190572 | 2352.19 | 316 | 305 | 80.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

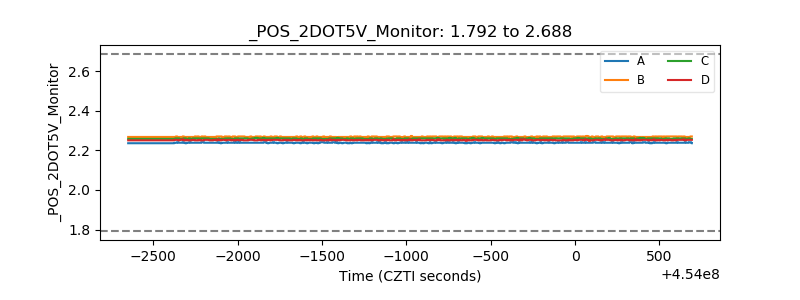

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
