| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006266_46773cztM0_level2.fits | modeM0/AS1A13_053T01_9000006266_46773cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,379,658,240 | 294,920,640 |
| Size | 1.3 GB | 281.3 MB |
| Events in quadrant A | 18,234,610 | 1,902,956 |
| Events in quadrant B | 11,249,644 | 2,002,975 |
| Events in quadrant C | 9,155,923 | 1,942,041 |
| Events in quadrant D | 10,953,809 | 1,763,885 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 388 | 0 |
| B | 0 | 388 | 0 |
| C | 0 | 388 | 0 |
| D | 0 | 388 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 65985 | 3 |
| B | 0 | 46501 | 3 |
| C | 0 | 41419 | 3 |
| D | 0 | 46734 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19110 | 898 | 4.699110% |
| B | 19110 | 480 | 2.511774% |
| C | 19111 | 364 | 1.904662% |
| D | 19111 | 719 | 3.762231% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20250 | 19110 | 224 | 224 | 1.11% | 1.17% |  |
| B | 20250 | 19112 | 79 | 79 | 0.39% | 0.41% |  |
| C | 20251 | 19112 | 182 | 182 | 0.90% | 0.95% |  |
| D | 20251 | 19112 | 535 | 535 | 2.64% | 2.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8840402 | 20599.52 | 2064 | 2013 | 429.1 |
| A | 13 | 248 | 736044 | 1710.8 | 2064 | 2013 | 429.1 |
| A | 9 | 191 | 600179 | 1394.14 | 2064 | 2013 | 429.1 |
| B | 3 | 112 | 2366942 | 5842.42 | 2061 | 1995 | 404.8 |
| B | 4 | 171 | 363906 | 894.07 | 2061 | 1995 | 404.8 |
| B | 0 | 245 | 110181 | 267.26 | 2061 | 1995 | 404.8 |
| C | 1 | 241 | 678373 | 1415.79 | 2046 | 2058 | 477.7 |
| C | 3 | 233 | 285136 | 592.59 | 2046 | 2058 | 477.7 |
| C | 14 | 254 | 151510 | 312.86 | 2046 | 2058 | 477.7 |
| D | 13 | 249 | 1316927 | 2560.12 | 2046 | 1981 | 513.6 |
| D | 13 | 138 | 555084 | 1076.86 | 2046 | 1981 | 513.6 |
| D | 1 | 52 | 383984 | 743.74 | 2046 | 1981 | 513.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

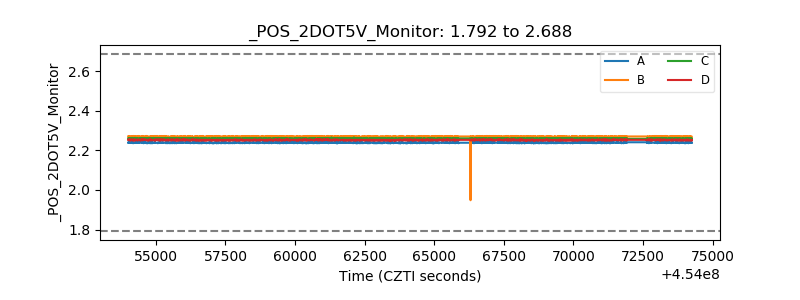

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
