| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006266_46774cztM0_level2.fits | modeM0/AS1A13_053T01_9000006266_46774cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,178,880 | 95,232,960 |
| Size | 510.4 MB | 90.8 MB |
| Events in quadrant A | 6,403,323 | 624,335 |
| Events in quadrant B | 3,975,167 | 654,903 |
| Events in quadrant C | 3,299,275 | 622,467 |
| Events in quadrant D | 5,655,010 | 550,938 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23078 | 1 |
| B | 0 | 15985 | 3 |
| C | 0 | 14402 | 1 |
| D | 0 | 21041 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6168 | 365 | 5.917639% |
| B | 6168 | 106 | 1.718547% |
| C | 6168 | 230 | 3.728923% |
| D | 6168 | 532 | 8.625162% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7053 | 6168 | 181 | 181 | 2.57% | 2.93% |  |
| B | 7054 | 6169 | 32 | 32 | 0.45% | 0.52% |  |
| C | 7053 | 6169 | 190 | 190 | 2.69% | 3.08% |  |
| D | 7053 | 6168 | 556 | 556 | 7.88% | 9.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3029708 | 22252.69 | 657 | 642 | 136.1 |
| A | 13 | 248 | 459194 | 3368.7 | 657 | 642 | 136.1 |
| A | 9 | 191 | 354662 | 2600.77 | 657 | 642 | 136.1 |
| B | 3 | 112 | 1154877 | 8749.81 | 657 | 636 | 131.9 |
| B | 0 | 198 | 61013 | 457.69 | 657 | 636 | 131.9 |
| B | 4 | 171 | 45006 | 336.35 | 657 | 636 | 131.9 |
| C | 1 | 241 | 615310 | 4042.86 | 642 | 647 | 152.0 |
| C | 14 | 254 | 117078 | 765.81 | 642 | 647 | 152.0 |
| C | 15 | 208 | 36527 | 236.0 | 642 | 647 | 152.0 |
| D | 1 | 52 | 2448594 | 15156.81 | 640 | 618 | 161.5 |
| D | 13 | 249 | 379918 | 2348.46 | 640 | 618 | 161.5 |
| D | 2 | 249 | 79901 | 490.89 | 640 | 618 | 161.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

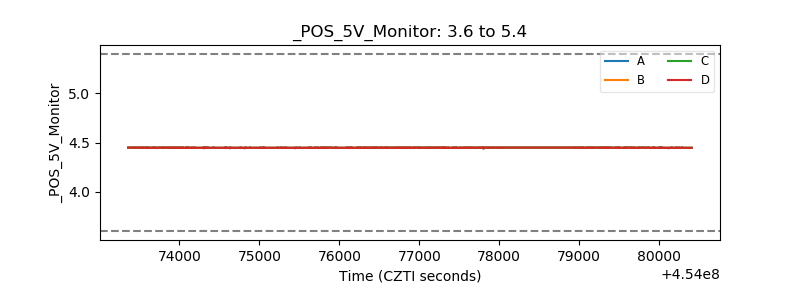

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
