| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006266_46776cztM0_level2.fits | modeM0/AS1A13_053T01_9000006266_46776cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,711,040 | 101,160,000 |
| Size | 468.9 MB | 96.5 MB |
| Events in quadrant A | 6,855,178 | 656,239 |
| Events in quadrant B | 3,574,242 | 698,198 |
| Events in quadrant C | 2,966,130 | 669,312 |
| Events in quadrant D | 4,313,855 | 596,079 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24618 | 1 |
| B | 0 | 14933 | 1 |
| C | 0 | 13532 | 1 |
| D | 0 | 17347 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6344 | 440 | 6.935687% |
| B | 6344 | 82 | 1.292560% |
| C | 6345 | 95 | 1.497242% |
| D | 6345 | 354 | 5.579196% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7394 | 6344 | 264 | 264 | 3.57% | 4.16% |  |
| B | 7394 | 6344 | 19 | 19 | 0.26% | 0.30% |  |
| C | 7395 | 6345 | 58 | 58 | 0.78% | 0.91% |  |
| D | 7395 | 6345 | 321 | 321 | 4.34% | 5.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3187046 | 22460.77 | 682 | 666 | 141.9 |
| A | 9 | 191 | 512790 | 3609.96 | 682 | 666 | 141.9 |
| A | 13 | 248 | 498780 | 3511.2 | 682 | 666 | 141.9 |
| B | 3 | 112 | 641200 | 4695.7 | 689 | 668 | 136.4 |
| B | 0 | 198 | 46464 | 335.73 | 689 | 668 | 136.4 |
| B | 5 | 172 | 40610 | 292.81 | 689 | 668 | 136.4 |
| C | 1 | 241 | 251256 | 1580.47 | 674 | 678 | 158.5 |
| C | 3 | 233 | 46108 | 286.54 | 674 | 678 | 158.5 |
| C | 14 | 254 | 33496 | 206.99 | 674 | 678 | 158.5 |
| D | 1 | 52 | 605243 | 3580.79 | 669 | 646 | 168.8 |
| D | 13 | 249 | 502649 | 2973.16 | 669 | 646 | 168.8 |
| D | 2 | 249 | 417127 | 2466.65 | 669 | 646 | 168.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

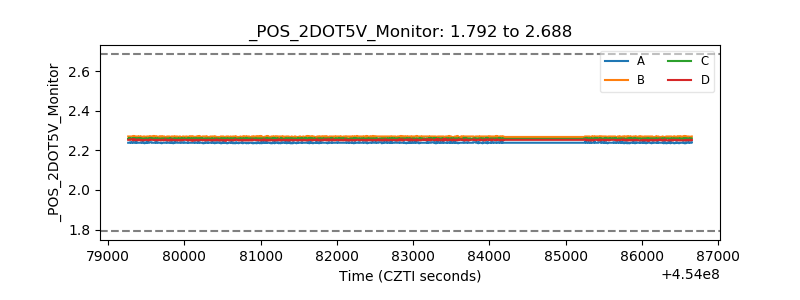

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
