| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006266_46779cztM0_level2.fits | modeM0/AS1A13_053T01_9000006266_46779cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,998,720 | 103,446,720 |
| Size | 413.9 MB | 98.7 MB |
| Events in quadrant A | 5,941,670 | 686,989 |
| Events in quadrant B | 3,757,812 | 720,309 |
| Events in quadrant C | 2,855,518 | 681,710 |
| Events in quadrant D | 3,047,012 | 626,631 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21502 | 1 |
| B | 0 | 15206 | 1 |
| C | 0 | 12746 | 1 |
| D | 0 | 13263 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5966 | 298 | 4.994972% |
| B | 5966 | 150 | 2.514247% |
| C | 5967 | 71 | 1.189878% |
| D | 5967 | 107 | 1.793196% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7181 | 5966 | 118 | 118 | 1.64% | 1.98% |  |
| B | 7181 | 5966 | 15 | 15 | 0.21% | 0.25% |  |
| C | 7182 | 5967 | 31 | 31 | 0.43% | 0.52% |  |
| D | 7182 | 5967 | 50 | 50 | 0.70% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3011398 | 21489.41 | 681 | 669 | 140.1 |
| A | 13 | 248 | 212679 | 1513.24 | 681 | 669 | 140.1 |
| A | 9 | 191 | 51001 | 359.25 | 681 | 669 | 140.1 |
| B | 3 | 112 | 882946 | 6695.72 | 684 | 666 | 131.8 |
| B | 15 | 201 | 44003 | 328.89 | 684 | 666 | 131.8 |
| B | 0 | 198 | 24442 | 180.44 | 684 | 666 | 131.8 |
| C | 14 | 254 | 129828 | 836.69 | 668 | 673 | 154.4 |
| C | 12 | 249 | 36720 | 233.52 | 668 | 673 | 154.4 |
| C | 1 | 241 | 34712 | 220.51 | 668 | 673 | 154.4 |
| D | 10 | 181 | 120530 | 731.36 | 667 | 646 | 163.9 |
| D | 1 | 52 | 86378 | 523.01 | 667 | 646 | 163.9 |
| D | 2 | 249 | 65846 | 397.75 | 667 | 646 | 163.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

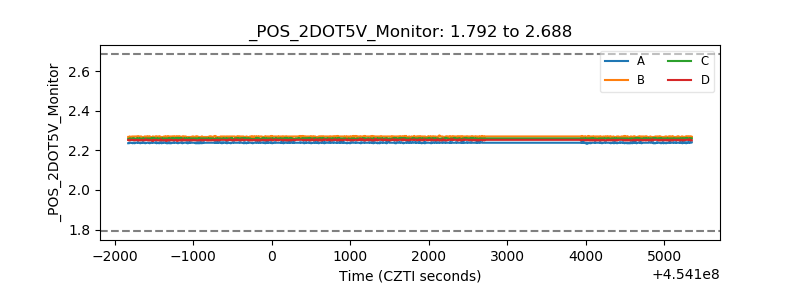

| +2.5 Volts monitor |  |

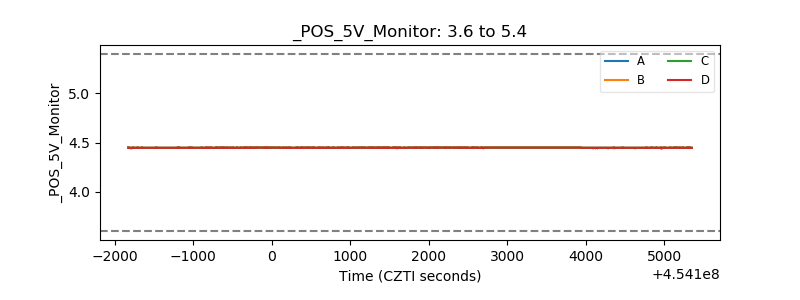

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
