| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006266_46780cztM0_level2.fits | modeM0/AS1A13_053T01_9000006266_46780cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,382,720 | 100,535,040 |
| Size | 417.1 MB | 95.9 MB |
| Events in quadrant A | 5,909,709 | 654,361 |
| Events in quadrant B | 3,670,248 | 705,395 |
| Events in quadrant C | 2,734,788 | 668,089 |
| Events in quadrant D | 3,410,933 | 598,835 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21248 | 1 |
| B | 0 | 14929 | 1 |
| C | 0 | 12456 | 1 |
| D | 0 | 14485 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5985 | 363 | 6.065163% |
| B | 5985 | 87 | 1.453634% |
| C | 5985 | 11 | 0.183793% |
| D | 5985 | 237 | 3.959900% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7205 | 5985 | 182 | 182 | 2.53% | 3.04% |  |
| B | 7205 | 5985 | 34 | 34 | 0.47% | 0.57% |  |
| C | 7205 | 5985 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7205 | 5986 | 225 | 225 | 3.12% | 3.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2926954 | 21730.72 | 654 | 641 | 134.7 |
| A | 13 | 248 | 369123 | 2736.34 | 654 | 641 | 134.7 |
| A | 9 | 191 | 32507 | 236.64 | 654 | 641 | 134.7 |
| B | 3 | 112 | 852285 | 6586.62 | 668 | 647 | 129.3 |
| B | 5 | 172 | 92078 | 707.13 | 668 | 647 | 129.3 |
| B | 0 | 245 | 28392 | 214.58 | 668 | 647 | 129.3 |
| C | 1 | 241 | 106463 | 694.22 | 657 | 659 | 152.4 |
| C | 12 | 249 | 25961 | 166.02 | 657 | 659 | 152.4 |
| C | 3 | 233 | 25803 | 164.98 | 657 | 659 | 152.4 |
| D | 10 | 181 | 311340 | 1946.8 | 647 | 627 | 159.6 |
| D | 13 | 249 | 255165 | 1594.83 | 647 | 627 | 159.6 |
| D | 2 | 249 | 219762 | 1373.01 | 647 | 627 | 159.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

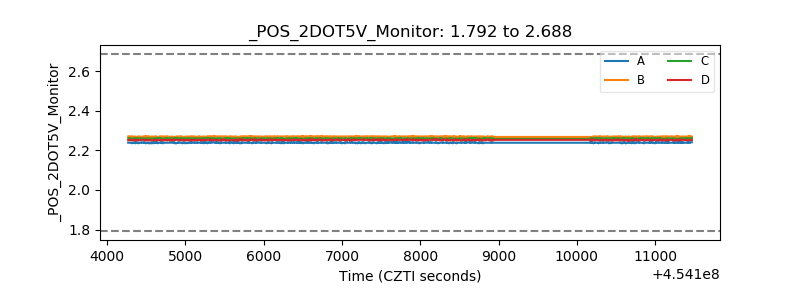

| +2.5 Volts monitor |  |

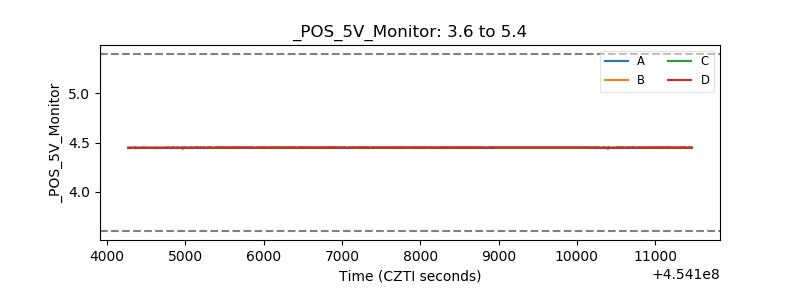

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
