| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006266_46793cztM0_level2.fits | modeM0/AS1A13_053T01_9000006266_46793cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,885,440 | 106,254,720 |
| Size | 436.7 MB | 101.3 MB |
| Events in quadrant A | 6,090,590 | 711,577 |
| Events in quadrant B | 3,229,059 | 747,092 |
| Events in quadrant C | 2,726,205 | 706,104 |
| Events in quadrant D | 4,430,351 | 627,483 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22073 | 4 |
| B | 0 | 13616 | 1 |
| C | 0 | 12431 | 1 |
| D | 0 | 17263 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6096 | 230 | 3.772966% |
| B | 6096 | 84 | 1.377953% |
| C | 6096 | 18 | 0.295276% |
| D | 6097 | 338 | 5.543710% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7336 | 6098 | 57 | 57 | 0.78% | 0.93% |  |
| B | 7336 | 6096 | 16 | 16 | 0.22% | 0.26% |  |
| C | 7336 | 6096 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7337 | 6098 | 313 | 313 | 4.27% | 5.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3175102 | 22166.41 | 701 | 687 | 143.2 |
| A | 13 | 248 | 74366 | 514.48 | 701 | 687 | 143.2 |
| A | 9 | 191 | 51886 | 357.51 | 701 | 687 | 143.2 |
| B | 3 | 112 | 128568 | 944.61 | 703 | 683 | 135.4 |
| B | 4 | 171 | 103830 | 761.89 | 703 | 683 | 135.4 |
| B | 0 | 198 | 77829 | 569.83 | 703 | 683 | 135.4 |
| C | 3 | 233 | 31382 | 193.76 | 683 | 684 | 158.4 |
| C | 1 | 241 | 24238 | 148.67 | 683 | 684 | 158.4 |
| C | 1 | 3 | 5163 | 28.27 | 683 | 684 | 158.4 |
| D | 13 | 249 | 784780 | 4714.31 | 671 | 649 | 166.3 |
| D | 13 | 138 | 286343 | 1717.63 | 671 | 649 | 166.3 |
| D | 1 | 52 | 273607 | 1641.06 | 671 | 649 | 166.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

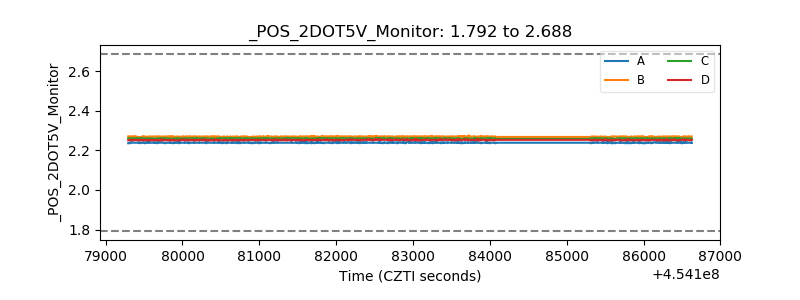

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
