| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006266_46796cztM0_level2.fits | modeM0/AS1A13_053T01_9000006266_46796cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,569,280 | 104,728,320 |
| Size | 444.0 MB | 99.9 MB |
| Events in quadrant A | 5,931,298 | 696,649 |
| Events in quadrant B | 2,941,836 | 730,702 |
| Events in quadrant C | 2,752,588 | 690,888 |
| Events in quadrant D | 5,101,961 | 598,255 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21716 | 1 |
| B | 0 | 13436 | 1 |
| C | 0 | 13231 | 1 |
| D | 0 | 19799 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6518 | 236 | 3.620743% |
| B | 6518 | 50 | 0.767106% |
| C | 6519 | 17 | 0.260776% |
| D | 6518 | 505 | 7.747775% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7318 | 6519 | 41 | 41 | 0.56% | 0.63% |  |
| B | 7318 | 6518 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7319 | 6519 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7318 | 6519 | 402 | 402 | 5.49% | 6.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3041925 | 20792.26 | 705 | 689 | 146.3 |
| A | 13 | 248 | 69654 | 471.5 | 705 | 689 | 146.3 |
| A | 15 | 235 | 53918 | 363.91 | 705 | 689 | 146.3 |
| B | 5 | 172 | 33471 | 233.28 | 712 | 689 | 140.5 |
| B | 0 | 198 | 19804 | 136.02 | 712 | 689 | 140.5 |
| B | 12 | 111 | 17945 | 122.79 | 712 | 689 | 140.5 |
| C | 14 | 254 | 17203 | 100.61 | 698 | 701 | 164.0 |
| C | 3 | 233 | 8135 | 45.32 | 698 | 701 | 164.0 |
| C | 14 | 67 | 4793 | 24.95 | 698 | 701 | 164.0 |
| D | 13 | 249 | 989775 | 5832.35 | 679 | 657 | 169.6 |
| D | 13 | 138 | 706878 | 4164.25 | 679 | 657 | 169.6 |
| D | 1 | 52 | 607149 | 3576.19 | 679 | 657 | 169.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

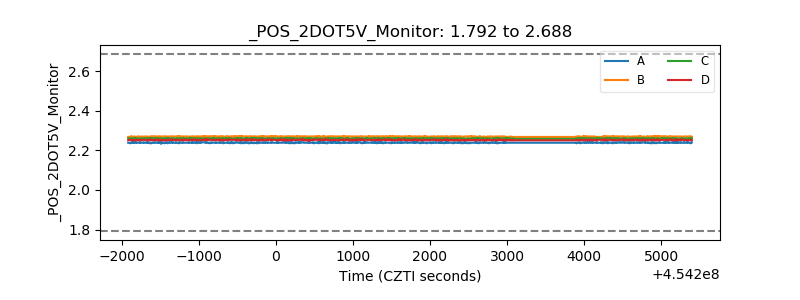

| +2.5 Volts monitor |  |

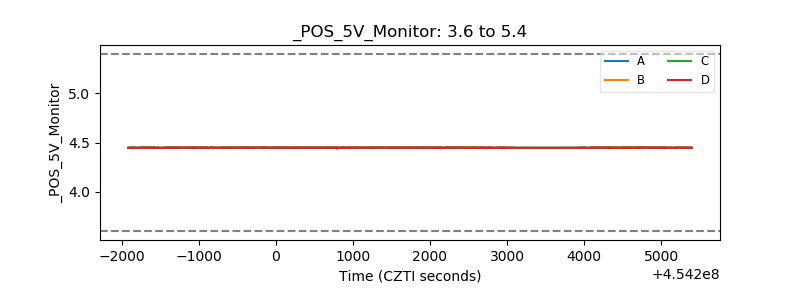

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
