| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000006272_46810cztM0_level2.fits | modeM0/AS1C07_001T10_9000006272_46810cztM0_level2_quad_clean.evt |
| Size (bytes) | 344,393,280 | 70,626,240 |
| Size | 328.4 MB | 67.4 MB |
| Events in quadrant A | 4,211,779 | 460,791 |
| Events in quadrant B | 2,789,641 | 478,310 |
| Events in quadrant C | 2,049,435 | 479,771 |
| Events in quadrant D | 3,353,793 | 409,216 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 90 | 0 |
| B | 0 | 90 | 0 |
| C | 0 | 90 | 0 |
| D | 0 | 90 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15341 | 3 |
| B | 0 | 11323 | 1 |
| C | 0 | 9460 | 1 |
| D | 0 | 13117 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4414 | 209 | 4.734934% |
| B | 4414 | 188 | 4.259175% |
| C | 4414 | 59 | 1.336656% |
| D | 4414 | 369 | 8.359764% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5349 | 4415 | 29 | 29 | 0.54% | 0.66% |  |
| B | 5349 | 4415 | 20 | 20 | 0.37% | 0.45% |  |
| C | 5349 | 4415 | 19 | 19 | 0.36% | 0.43% |  |
| D | 5349 | 4415 | 280 | 280 | 5.23% | 6.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2269908 | 22847.2 | 477 | 466 | 99.3 |
| A | 0 | 243 | 36296 | 360.71 | 477 | 466 | 99.3 |
| A | 13 | 248 | 21357 | 210.32 | 477 | 466 | 99.3 |
| B | 3 | 112 | 640361 | 6726.06 | 481 | 466 | 95.1 |
| B | 15 | 36 | 63618 | 663.8 | 481 | 466 | 95.1 |
| B | 4 | 171 | 60319 | 629.12 | 481 | 466 | 95.1 |
| C | 14 | 254 | 147892 | 1306.79 | 480 | 482 | 112.8 |
| C | 12 | 249 | 9174 | 77.05 | 480 | 482 | 112.8 |
| C | 12 | 2 | 7168 | 59.27 | 480 | 482 | 112.8 |
| D | 13 | 249 | 964141 | 8237.97 | 462 | 448 | 117.0 |
| D | 1 | 52 | 493742 | 4216.84 | 462 | 448 | 117.0 |
| D | 13 | 138 | 35759 | 301.85 | 462 | 448 | 117.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

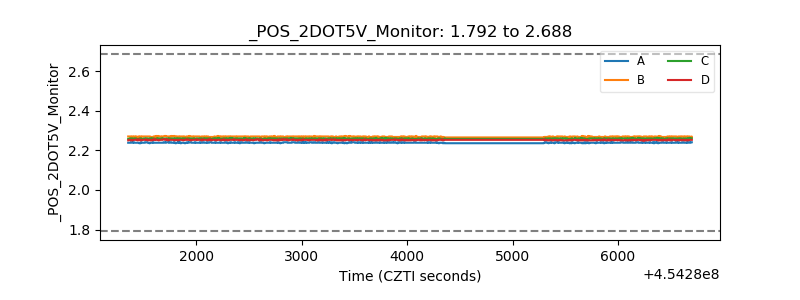

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
