| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000006272_46811cztM0_level2.fits | modeM0/AS1C07_001T10_9000006272_46811cztM0_level2_quad_clean.evt |
| Size (bytes) | 555,171,840 | 114,033,600 |
| Size | 529.5 MB | 108.8 MB |
| Events in quadrant A | 7,115,950 | 726,773 |
| Events in quadrant B | 4,257,872 | 770,825 |
| Events in quadrant C | 3,276,626 | 775,565 |
| Events in quadrant D | 5,341,673 | 677,894 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25877 | 2 |
| B | 0 | 17804 | 2 |
| C | 0 | 15315 | 2 |
| D | 0 | 21074 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7205 | 445 | 6.176266% |
| B | 7206 | 250 | 3.469331% |
| C | 7205 | 58 | 0.804997% |
| D | 7205 | 398 | 5.523942% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8710 | 7207 | 78 | 78 | 0.90% | 1.08% |  |
| B | 8711 | 7208 | 44 | 44 | 0.51% | 0.61% |  |
| C | 8710 | 7207 | 18 | 18 | 0.21% | 0.25% |  |
| D | 8710 | 7207 | 280 | 280 | 3.21% | 3.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3857650 | 24346.31 | 768 | 750 | 158.4 |
| A | 15 | 235 | 77634 | 485.32 | 768 | 750 | 158.4 |
| A | 13 | 248 | 75113 | 469.41 | 768 | 750 | 158.4 |
| B | 3 | 112 | 516437 | 3398.68 | 781 | 756 | 151.7 |
| B | 5 | 255 | 181273 | 1189.73 | 781 | 756 | 151.7 |
| B | 4 | 171 | 174183 | 1143.0 | 781 | 756 | 151.7 |
| C | 14 | 254 | 182636 | 995.63 | 784 | 785 | 182.6 |
| C | 0 | 207 | 23105 | 122.2 | 784 | 785 | 182.6 |
| C | 12 | 2 | 6150 | 29.37 | 784 | 785 | 182.6 |
| D | 1 | 52 | 1007149 | 5321.63 | 762 | 737 | 189.1 |
| D | 13 | 249 | 607437 | 3208.06 | 762 | 737 | 189.1 |
| D | 12 | 128 | 305896 | 1613.6 | 762 | 737 | 189.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

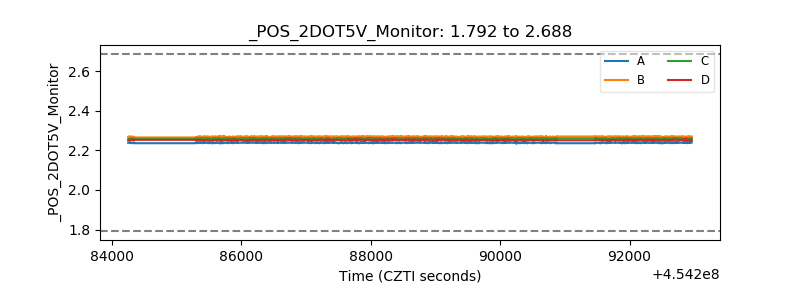

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
