| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000006272_46825cztM0_level2.fits | modeM0/AS1C07_001T10_9000006272_46825cztM0_level2_quad_clean.evt |
| Size (bytes) | 616,083,840 | 107,248,320 |
| Size | 587.5 MB | 102.3 MB |
| Events in quadrant A | 7,356,858 | 673,126 |
| Events in quadrant B | 5,133,758 | 708,421 |
| Events in quadrant C | 3,004,299 | 751,400 |
| Events in quadrant D | 6,782,319 | 638,892 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26237 | 2 |
| B | 0 | 20200 | 2 |
| C | 0 | 14137 | 2 |
| D | 0 | 24958 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6823 | 673 | 9.863696% |
| B | 6823 | 621 | 9.101568% |
| C | 6823 | 12 | 0.175876% |
| D | 6823 | 588 | 8.617910% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7678 | 6825 | 324 | 324 | 4.22% | 4.75% |  |
| B | 7678 | 6825 | 315 | 315 | 4.10% | 4.62% |  |
| C | 7678 | 6825 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7678 | 6825 | 457 | 457 | 5.95% | 6.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3674278 | 25071.84 | 706 | 691 | 146.5 |
| A | 9 | 191 | 735483 | 5014.88 | 706 | 691 | 146.5 |
| A | 13 | 248 | 130019 | 882.65 | 706 | 691 | 146.5 |
| B | 3 | 112 | 2048091 | 14803.24 | 720 | 695 | 138.3 |
| B | 15 | 36 | 67934 | 486.15 | 720 | 695 | 138.3 |
| B | 4 | 171 | 41684 | 296.36 | 720 | 695 | 138.3 |
| C | 14 | 254 | 81793 | 473.75 | 742 | 745 | 171.1 |
| C | 12 | 250 | 9770 | 52.75 | 742 | 745 | 171.1 |
| C | 3 | 233 | 8656 | 46.24 | 742 | 745 | 171.1 |
| D | 1 | 52 | 2761519 | 15719.64 | 709 | 688 | 175.6 |
| D | 13 | 249 | 426225 | 2422.93 | 709 | 688 | 175.6 |
| D | 13 | 138 | 210978 | 1197.35 | 709 | 688 | 175.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

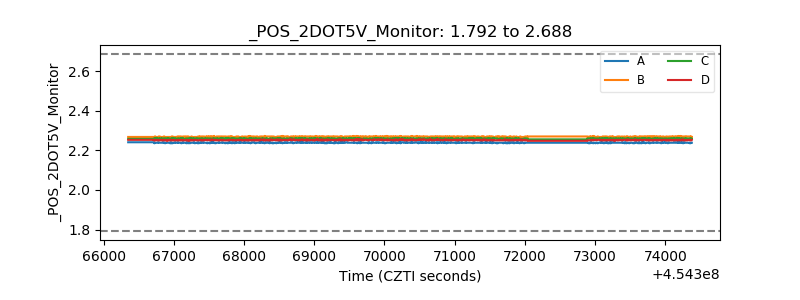

| +2.5 Volts monitor |  |

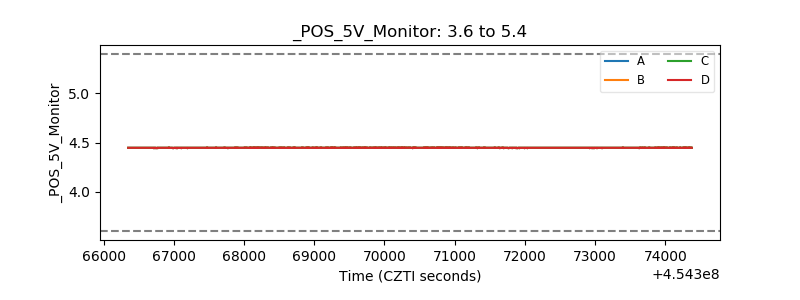

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
