| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000006272_46827cztM0_level2.fits | modeM0/AS1C07_001T10_9000006272_46827cztM0_level2_quad_clean.evt |
| Size (bytes) | 679,440,960 | 132,658,560 |
| Size | 648.0 MB | 126.5 MB |
| Events in quadrant A | 7,814,169 | 869,198 |
| Events in quadrant B | 5,721,691 | 892,303 |
| Events in quadrant C | 3,879,910 | 899,359 |
| Events in quadrant D | 7,088,138 | 775,117 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28784 | 2 |
| B | 0 | 22867 | 2 |
| C | 0 | 17817 | 2 |
| D | 0 | 26963 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8359 | 274 | 3.277904% |
| B | 8359 | 389 | 4.653667% |
| C | 8359 | 68 | 0.813494% |
| D | 8359 | 650 | 7.776050% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8504 | 8361 | 24 | 24 | 0.28% | 0.29% |  |
| B | 8504 | 8361 | 176 | 176 | 2.07% | 2.11% |  |
| C | 8504 | 8361 | 35 | 35 | 0.41% | 0.42% |  |
| D | 8504 | 8361 | 469 | 469 | 5.52% | 5.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4030523 | 21244.55 | 914 | 893 | 189.7 |
| A | 15 | 235 | 73106 | 380.71 | 914 | 893 | 189.7 |
| A | 7 | 3 | 70558 | 367.28 | 914 | 893 | 189.7 |
| B | 3 | 112 | 1836278 | 10196.64 | 916 | 886 | 180.0 |
| B | 0 | 198 | 85172 | 468.26 | 916 | 886 | 180.0 |
| B | 4 | 171 | 61478 | 336.62 | 916 | 886 | 180.0 |
| C | 14 | 254 | 136493 | 626.79 | 923 | 924 | 216.3 |
| C | 12 | 250 | 82696 | 378.07 | 923 | 924 | 216.3 |
| C | 0 | 207 | 40478 | 182.87 | 923 | 924 | 216.3 |
| D | 1 | 52 | 2531375 | 11416.31 | 887 | 858 | 221.7 |
| D | 13 | 112 | 336016 | 1512.05 | 887 | 858 | 221.7 |
| D | 13 | 249 | 313798 | 1411.81 | 887 | 858 | 221.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

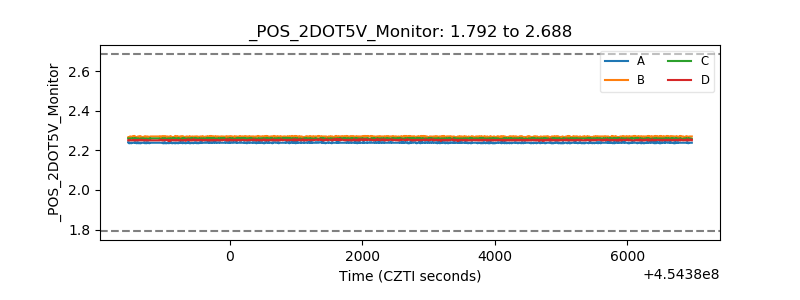

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
