| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000006272_46831cztM0_level2.fits | modeM0/AS1C07_001T10_9000006272_46831cztM0_level2_quad_clean.evt |
| Size (bytes) | 744,137,280 | 146,805,120 |
| Size | 709.7 MB | 140.0 MB |
| Events in quadrant A | 8,599,038 | 964,787 |
| Events in quadrant B | 7,573,526 | 959,617 |
| Events in quadrant C | 4,068,367 | 989,339 |
| Events in quadrant D | 6,561,662 | 865,524 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 192 | 0 |
| B | 0 | 192 | 0 |
| C | 0 | 192 | 0 |
| D | 0 | 192 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31735 | 1 |
| B | 0 | 29187 | 1 |
| C | 0 | 19607 | 1 |
| D | 0 | 26489 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9602 | 229 | 2.384920% |
| B | 9603 | 710 | 7.393523% |
| C | 9603 | 43 | 0.447777% |
| D | 9602 | 540 | 5.623828% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9652 | 9603 | 3 | 3 | 0.03% | 0.03% |  |
| B | 9653 | 9604 | 315 | 315 | 3.26% | 3.28% |  |
| C | 9653 | 9604 | 6 | 6 | 0.06% | 0.06% |  |
| D | 9653 | 9604 | 400 | 400 | 4.14% | 4.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4532846 | 21195.34 | 1024 | 1001 | 213.8 |
| A | 9 | 191 | 58471 | 268.79 | 1024 | 1001 | 213.8 |
| A | 13 | 248 | 24547 | 110.12 | 1024 | 1001 | 213.8 |
| B | 3 | 112 | 3052126 | 15457.78 | 1006 | 975 | 197.4 |
| B | 15 | 36 | 132275 | 665.19 | 1006 | 975 | 197.4 |
| B | 4 | 171 | 86131 | 431.42 | 1006 | 975 | 197.4 |
| C | 14 | 254 | 61648 | 256.27 | 1011 | 1015 | 236.6 |
| C | 3 | 233 | 50455 | 208.96 | 1011 | 1015 | 236.6 |
| C | 13 | 61 | 6916 | 24.94 | 1011 | 1015 | 236.6 |
| D | 1 | 52 | 1063538 | 4309.06 | 987 | 956 | 246.6 |
| D | 9 | 49 | 495692 | 2006.29 | 987 | 956 | 246.6 |
| D | 13 | 249 | 405072 | 1638.8 | 987 | 956 | 246.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

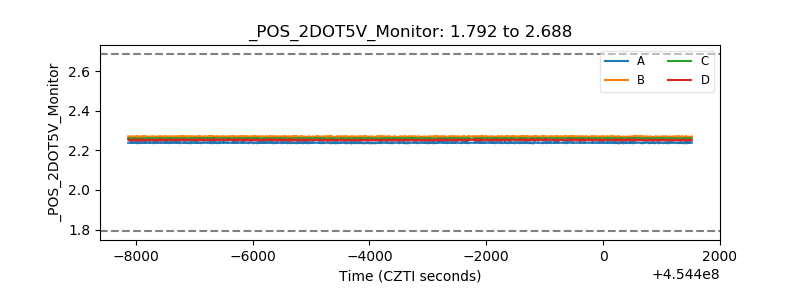

| +2.5 Volts monitor |  |

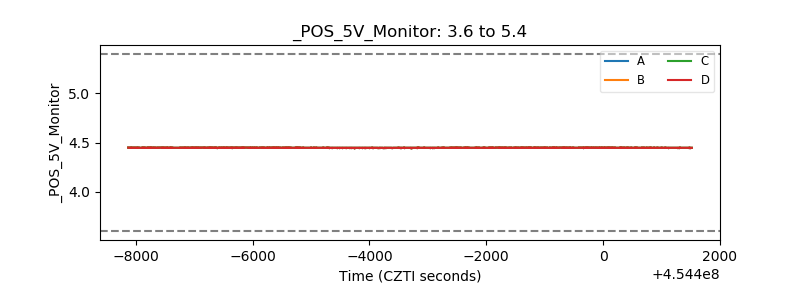

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
