| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006274_46836cztM0_level2.fits | modeM0/AS1A13_053T01_9000006274_46836cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,869,120 | 105,321,600 |
| Size | 456.7 MB | 100.4 MB |
| Events in quadrant A | 6,071,338 | 716,009 |
| Events in quadrant B | 3,967,275 | 708,240 |
| Events in quadrant C | 2,729,468 | 706,712 |
| Events in quadrant D | 4,482,654 | 630,453 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22071 | 1 |
| B | 0 | 15772 | 1 |
| C | 0 | 12528 | 1 |
| D | 0 | 17417 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6129 | 203 | 3.312123% |
| B | 6129 | 346 | 5.645293% |
| C | 6130 | 12 | 0.195759% |
| D | 6129 | 297 | 4.845815% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7364 | 6130 | 51 | 51 | 0.69% | 0.83% |  |
| B | 7364 | 6130 | 274 | 274 | 3.72% | 4.47% |  |
| C | 7365 | 6131 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7364 | 6130 | 258 | 258 | 3.50% | 4.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3273212 | 22509.78 | 710 | 698 | 145.4 |
| A | 9 | 143 | 30532 | 205.21 | 710 | 698 | 145.4 |
| A | 0 | 243 | 10384 | 66.62 | 710 | 698 | 145.4 |
| B | 5 | 172 | 698914 | 5273.83 | 682 | 663 | 132.4 |
| B | 3 | 112 | 360556 | 2718.24 | 682 | 663 | 132.4 |
| B | 15 | 36 | 108754 | 816.4 | 682 | 663 | 132.4 |
| C | 1 | 241 | 24664 | 149.33 | 685 | 690 | 160.5 |
| C | 0 | 207 | 12160 | 71.45 | 685 | 690 | 160.5 |
| C | 14 | 254 | 9482 | 54.76 | 685 | 690 | 160.5 |
| D | 1 | 52 | 1036119 | 6195.12 | 677 | 656 | 167.1 |
| D | 10 | 181 | 356344 | 2128.06 | 677 | 656 | 167.1 |
| D | 13 | 249 | 325307 | 1942.37 | 677 | 656 | 167.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

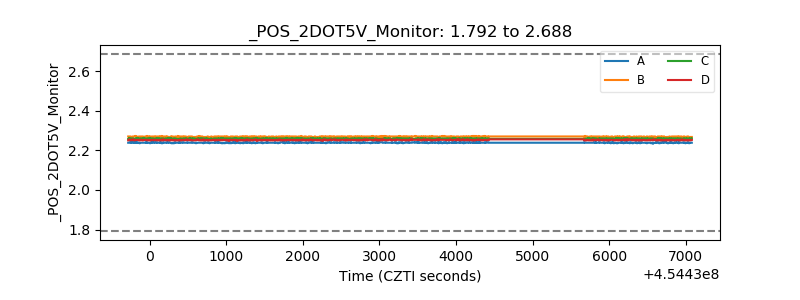

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
