| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006274_46842cztM0_level2.fits | modeM0/AS1A13_053T01_9000006274_46842cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,830,080 | 123,261,120 |
| Size | 506.2 MB | 117.6 MB |
| Events in quadrant A | 6,848,886 | 833,987 |
| Events in quadrant B | 4,018,627 | 837,894 |
| Events in quadrant C | 3,556,178 | 804,124 |
| Events in quadrant D | 4,621,596 | 714,580 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24975 | 0 |
| B | 0 | 17228 | 0 |
| C | 0 | 16294 | 0 |
| D | 0 | 19588 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7789 | 38 | 0.487868% |
| B | 7789 | 127 | 1.630505% |
| C | 7789 | 31 | 0.397997% |
| D | 7790 | 388 | 4.980745% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7789 | 7789 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7789 | 7789 | 65 | 65 | 0.83% | 0.83% |  |
| C | 7789 | 7789 | 21 | 21 | 0.27% | 0.27% |  |
| D | 7790 | 7790 | 300 | 300 | 3.85% | 3.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3523359 | 19987.08 | 846 | 829 | 176.2 |
| A | 13 | 6 | 23810 | 130.4 | 846 | 829 | 176.2 |
| A | 13 | 254 | 12001 | 63.39 | 846 | 829 | 176.2 |
| B | 3 | 112 | 246359 | 1479.9 | 840 | 812 | 165.9 |
| B | 5 | 32 | 198693 | 1192.62 | 840 | 812 | 165.9 |
| B | 8 | 234 | 61593 | 366.32 | 840 | 812 | 165.9 |
| C | 1 | 241 | 230021 | 1171.02 | 833 | 836 | 195.7 |
| C | 14 | 254 | 67239 | 339.29 | 833 | 836 | 195.7 |
| C | 13 | 61 | 5686 | 24.78 | 833 | 836 | 195.7 |
| D | 13 | 249 | 1123202 | 5519.39 | 811 | 786 | 203.4 |
| D | 1 | 52 | 178022 | 871.54 | 811 | 786 | 203.4 |
| D | 5 | 171 | 88351 | 430.59 | 811 | 786 | 203.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

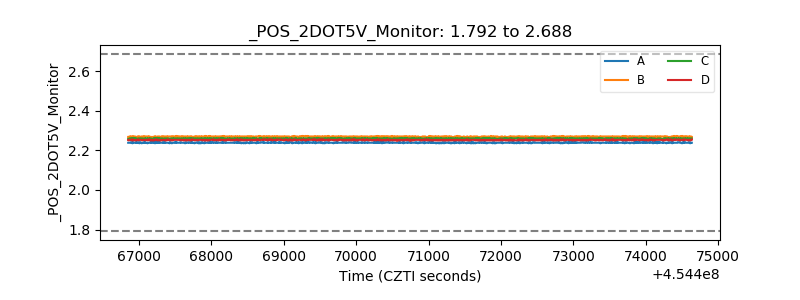

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
