| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006274_46845cztM0_level2.fits | modeM0/AS1A13_053T01_9000006274_46845cztM0_level2_quad_clean.evt |
| Size (bytes) | 980,714,880 | 204,696,000 |
| Size | 935.3 MB | 195.2 MB |
| Events in quadrant A | 11,889,292 | 1,367,783 |
| Events in quadrant B | 7,240,263 | 1,402,352 |
| Events in quadrant C | 7,480,850 | 1,313,965 |
| Events in quadrant D | 8,667,375 | 1,197,950 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43120 | 2 |
| B | 0 | 30404 | 2 |
| C | 0 | 31716 | 2 |
| D | 0 | 35259 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 268 | 0 |
| B | 0 | 268 | 0 |
| C | 0 | 268 | 0 |
| D | 0 | 268 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13253 | 401 | 3.025730% |
| B | 13254 | 311 | 2.346461% |
| C | 13254 | 603 | 4.549570% |
| D | 13254 | 915 | 6.903576% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14003 | 13255 | 3 | 3 | 0.02% | 0.02% |  |
| B | 14004 | 13256 | 73 | 73 | 0.52% | 0.55% |  |
| C | 14004 | 13256 | 346 | 346 | 2.47% | 2.61% |  |
| D | 14004 | 13256 | 628 | 628 | 4.48% | 4.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 6151479 | 20288.35 | 1459 | 1424 | 303.1 |
| A | 7 | 3 | 49291 | 157.91 | 1459 | 1424 | 303.1 |
| A | 13 | 254 | 20148 | 61.77 | 1459 | 1424 | 303.1 |
| B | 3 | 112 | 793577 | 2791.66 | 1445 | 1396 | 283.8 |
| B | 12 | 3 | 405224 | 1423.1 | 1445 | 1396 | 283.8 |
| B | 0 | 198 | 74166 | 256.44 | 1445 | 1396 | 283.8 |
| C | 14 | 254 | 1395080 | 4185.3 | 1414 | 1416 | 333.0 |
| C | 1 | 241 | 545125 | 1632.81 | 1414 | 1416 | 333.0 |
| C | 3 | 233 | 9872 | 25.39 | 1414 | 1416 | 333.0 |
| D | 13 | 249 | 2394609 | 6817.54 | 1418 | 1374 | 351.0 |
| D | 1 | 52 | 676413 | 1922.96 | 1418 | 1374 | 351.0 |
| D | 2 | 37 | 72591 | 202.87 | 1418 | 1374 | 351.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

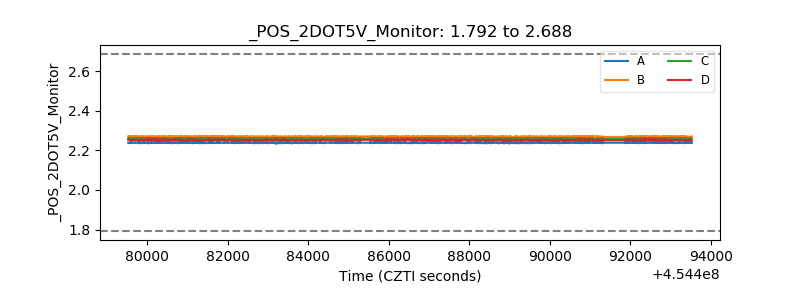

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
