| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006274_46853cztM0_level2.fits | modeM0/AS1A13_053T01_9000006274_46853cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,644,160 | 108,374,400 |
| Size | 495.6 MB | 103.4 MB |
| Events in quadrant A | 6,515,076 | 716,130 |
| Events in quadrant B | 4,341,007 | 742,753 |
| Events in quadrant C | 3,177,389 | 719,948 |
| Events in quadrant D | 4,700,725 | 651,255 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23583 | 2 |
| B | 0 | 17267 | 3 |
| C | 0 | 14129 | 2 |
| D | 0 | 18413 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6471 | 368 | 5.686911% |
| B | 6470 | 274 | 4.234930% |
| C | 6470 | 68 | 1.051005% |
| D | 6470 | 209 | 3.230294% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7606 | 6472 | 90 | 90 | 1.18% | 1.39% |  |
| B | 7605 | 6471 | 119 | 119 | 1.56% | 1.84% |  |
| C | 7605 | 6471 | 37 | 37 | 0.49% | 0.57% |  |
| D | 7605 | 6471 | 105 | 105 | 1.38% | 1.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3556054 | 23384.0 | 734 | 719 | 152.0 |
| A | 7 | 3 | 68825 | 447.94 | 734 | 719 | 152.0 |
| A | 9 | 191 | 14607 | 91.34 | 734 | 719 | 152.0 |
| B | 3 | 112 | 1250862 | 8793.14 | 732 | 710 | 142.2 |
| B | 0 | 198 | 60671 | 421.75 | 732 | 710 | 142.2 |
| B | 0 | 199 | 45043 | 311.82 | 732 | 710 | 142.2 |
| C | 14 | 254 | 275446 | 1636.95 | 720 | 726 | 167.8 |
| C | 1 | 241 | 85763 | 506.7 | 720 | 726 | 167.8 |
| C | 13 | 61 | 4919 | 24.98 | 720 | 726 | 167.8 |
| D | 1 | 52 | 1432870 | 8070.46 | 716 | 693 | 177.5 |
| D | 13 | 249 | 230039 | 1292.39 | 716 | 693 | 177.5 |
| D | 13 | 171 | 80404 | 449.18 | 716 | 693 | 177.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

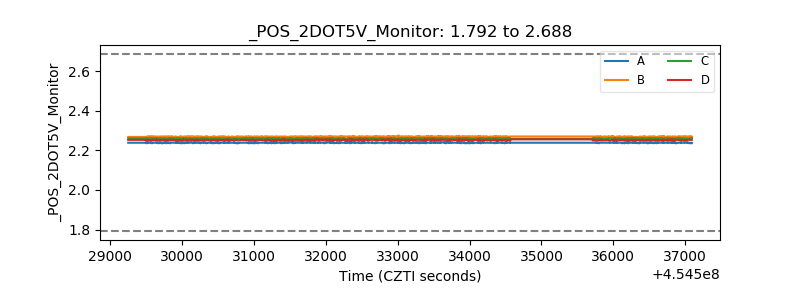

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
