| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006274_46863cztM0_level2.fits | modeM0/AS1A13_053T01_9000006274_46863cztM0_level2_quad_clean.evt |
| Size (bytes) | 418,988,160 | 95,158,080 |
| Size | 399.6 MB | 90.7 MB |
| Events in quadrant A | 5,530,575 | 629,878 |
| Events in quadrant B | 2,846,565 | 653,047 |
| Events in quadrant C | 2,848,556 | 621,621 |
| Events in quadrant D | 3,820,306 | 560,177 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19775 | 1 |
| B | 0 | 12532 | 1 |
| C | 0 | 12929 | 1 |
| D | 0 | 15532 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5961 | 175 | 2.935749% |
| B | 5961 | 71 | 1.191075% |
| C | 5962 | 130 | 2.180476% |
| D | 5962 | 335 | 5.618920% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6976 | 5961 | 20 | 20 | 0.29% | 0.34% |  |
| B | 6976 | 5962 | 8 | 8 | 0.11% | 0.13% |  |
| C | 6977 | 5963 | 88 | 88 | 1.26% | 1.48% |  |
| D | 6977 | 5963 | 238 | 238 | 3.41% | 3.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2948156 | 21750.73 | 652 | 637 | 135.5 |
| A | 7 | 3 | 38451 | 279.04 | 652 | 637 | 135.5 |
| A | 13 | 248 | 9762 | 67.34 | 652 | 637 | 135.5 |
| B | 3 | 112 | 146402 | 1132.49 | 646 | 627 | 128.7 |
| B | 0 | 200 | 46779 | 358.54 | 646 | 627 | 128.7 |
| B | 5 | 172 | 28485 | 216.42 | 646 | 627 | 128.7 |
| C | 14 | 254 | 338695 | 2251.22 | 635 | 638 | 150.2 |
| C | 3 | 233 | 20399 | 131.59 | 635 | 638 | 150.2 |
| C | 0 | 207 | 7749 | 47.35 | 635 | 638 | 150.2 |
| D | 13 | 249 | 661611 | 4123.72 | 634 | 615 | 160.3 |
| D | 1 | 52 | 639953 | 3988.6 | 634 | 615 | 160.3 |
| D | 11 | 192 | 38681 | 237.48 | 634 | 615 | 160.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

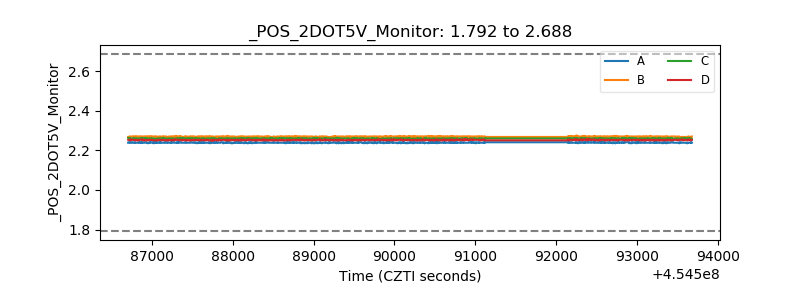

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
