| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006274_46865cztM0_level2.fits | modeM0/AS1A13_053T01_9000006274_46865cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,448,000 | 97,453,440 |
| Size | 440.1 MB | 92.9 MB |
| Events in quadrant A | 5,678,730 | 663,640 |
| Events in quadrant B | 3,334,027 | 688,181 |
| Events in quadrant C | 2,627,510 | 657,077 |
| Events in quadrant D | 4,991,030 | 536,783 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20767 | 3 |
| B | 0 | 13757 | 1 |
| C | 0 | 12025 | 1 |
| D | 0 | 18777 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5795 | 236 | 4.072476% |
| B | 5795 | 143 | 2.467645% |
| C | 5796 | 68 | 1.173223% |
| D | 5796 | 776 | 13.388544% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6955 | 5796 | 24 | 24 | 0.35% | 0.41% |  |
| B | 6955 | 5796 | 33 | 33 | 0.47% | 0.57% |  |
| C | 6956 | 5797 | 8 | 8 | 0.12% | 0.14% |  |
| D | 6956 | 5797 | 608 | 608 | 8.74% | 10.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3026961 | 22013.58 | 666 | 651 | 137.5 |
| A | 7 | 3 | 38947 | 278.57 | 666 | 651 | 137.5 |
| A | 13 | 248 | 17110 | 119.72 | 666 | 651 | 137.5 |
| B | 3 | 112 | 574782 | 4481.95 | 662 | 643 | 128.1 |
| B | 5 | 173 | 66923 | 517.41 | 662 | 643 | 128.1 |
| B | 0 | 198 | 22924 | 173.93 | 662 | 643 | 128.1 |
| C | 14 | 254 | 63034 | 412.33 | 649 | 650 | 151.3 |
| C | 0 | 207 | 20724 | 132.68 | 649 | 650 | 151.3 |
| C | 1 | 241 | 13987 | 88.15 | 649 | 650 | 151.3 |
| D | 1 | 52 | 2085255 | 13374.94 | 622 | 601 | 155.9 |
| D | 13 | 249 | 242822 | 1554.07 | 622 | 601 | 155.9 |
| D | 11 | 192 | 163606 | 1045.82 | 622 | 601 | 155.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

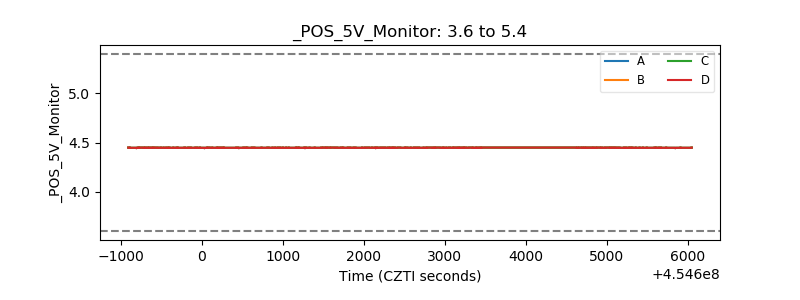

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
