| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006274_46871cztM0_level2.fits | modeM0/AS1A13_053T01_9000006274_46871cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,216,320 | 121,262,400 |
| Size | 519.0 MB | 115.6 MB |
| Events in quadrant A | 6,819,704 | 817,107 |
| Events in quadrant B | 3,982,628 | 831,765 |
| Events in quadrant C | 3,407,566 | 790,269 |
| Events in quadrant D | 5,338,634 | 697,536 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24919 | 0 |
| B | 0 | 17073 | 1 |
| C | 0 | 15979 | 0 |
| D | 0 | 21501 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7696 | 61 | 0.792620% |
| B | 7695 | 50 | 0.649773% |
| C | 7696 | 20 | 0.259875% |
| D | 7696 | 462 | 6.003119% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7696 | 7696 | 16 | 16 | 0.21% | 0.21% |  |
| B | 7696 | 7696 | 18 | 18 | 0.23% | 0.23% |  |
| C | 7696 | 7696 | 16 | 16 | 0.21% | 0.21% |  |
| D | 7696 | 7696 | 409 | 409 | 5.31% | 5.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3504201 | 20154.83 | 832 | 812 | 173.8 |
| A | 9 | 191 | 49987 | 282.9 | 832 | 812 | 173.8 |
| A | 13 | 248 | 32395 | 181.7 | 832 | 812 | 173.8 |
| B | 3 | 112 | 555329 | 3388.76 | 827 | 801 | 163.6 |
| B | 0 | 200 | 51871 | 312.09 | 827 | 801 | 163.6 |
| B | 8 | 234 | 27565 | 163.56 | 827 | 801 | 163.6 |
| C | 1 | 241 | 141250 | 726.9 | 816 | 820 | 193.2 |
| C | 14 | 254 | 72072 | 368.82 | 816 | 820 | 193.2 |
| C | 1 | 3 | 8346 | 38.96 | 816 | 820 | 193.2 |
| D | 1 | 52 | 1403423 | 7097.55 | 793 | 768 | 197.6 |
| D | 13 | 249 | 504593 | 2549.4 | 793 | 768 | 197.6 |
| D | 11 | 192 | 120854 | 607.65 | 793 | 768 | 197.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

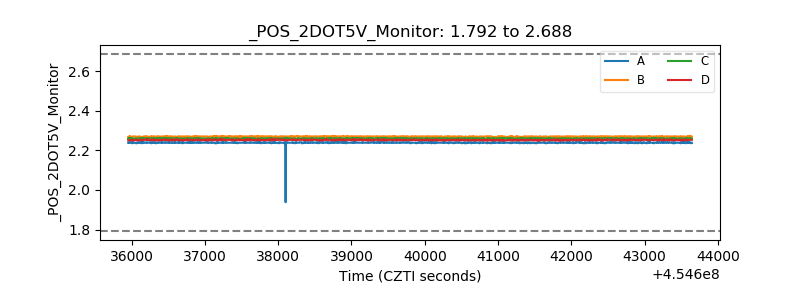

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
