| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006274_46878cztM0_level2.fits | modeM0/AS1A13_053T01_9000006274_46878cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,144,640 | 102,087,360 |
| Size | 445.5 MB | 97.4 MB |
| Events in quadrant A | 5,919,736 | 677,465 |
| Events in quadrant B | 3,988,682 | 695,006 |
| Events in quadrant C | 2,820,138 | 674,283 |
| Events in quadrant D | 4,077,048 | 606,595 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21264 | 1 |
| B | 0 | 16047 | 1 |
| C | 0 | 13118 | 1 |
| D | 0 | 16557 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6269 | 177 | 2.823417% |
| B | 6269 | 140 | 2.233211% |
| C | 6270 | 70 | 1.116427% |
| D | 6270 | 325 | 5.183413% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7324 | 6269 | 23 | 23 | 0.31% | 0.37% |  |
| B | 7324 | 6269 | 57 | 57 | 0.78% | 0.91% |  |
| C | 7325 | 6271 | 36 | 36 | 0.49% | 0.57% |  |
| D | 7325 | 6270 | 242 | 242 | 3.30% | 3.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3126696 | 21664.3 | 694 | 679 | 144.3 |
| A | 13 | 248 | 66708 | 457.6 | 694 | 679 | 144.3 |
| A | 9 | 191 | 16899 | 112.41 | 694 | 679 | 144.3 |
| B | 3 | 112 | 1047462 | 7729.55 | 686 | 663 | 135.4 |
| B | 0 | 198 | 69143 | 505.66 | 686 | 663 | 135.4 |
| B | 15 | 36 | 56833 | 414.76 | 686 | 663 | 135.4 |
| C | 14 | 254 | 146847 | 918.12 | 677 | 681 | 159.2 |
| C | 1 | 241 | 22139 | 134.79 | 677 | 681 | 159.2 |
| C | 3 | 233 | 7014 | 39.78 | 677 | 681 | 159.2 |
| D | 2 | 249 | 683396 | 4072.24 | 675 | 654 | 167.7 |
| D | 13 | 249 | 405620 | 2415.43 | 675 | 654 | 167.7 |
| D | 1 | 52 | 184026 | 1093.73 | 675 | 654 | 167.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

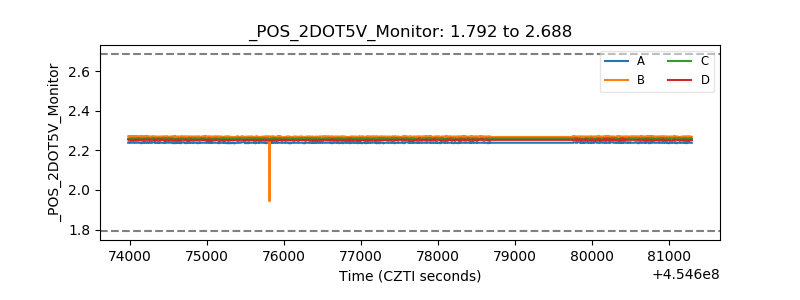

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
