| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_068T05_9000006280_46899cztM0_level2.fits | modeM0/AS1A13_068T05_9000006280_46899cztM0_level2_quad_clean.evt |
| Size (bytes) | 845,602,560 | 109,918,080 |
| Size | 806.4 MB | 104.8 MB |
| Events in quadrant A | 7,446,932 | 838,886 |
| Events in quadrant B | 14,384,106 | 350,357 |
| Events in quadrant C | 4,026,205 | 831,357 |
| Events in quadrant D | 4,832,617 | 758,461 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27187 | 1 |
| B | 0 | 48176 | 1 |
| C | 0 | 17935 | 1 |
| D | 0 | 20248 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7896 | 244 | 3.090172% |
| B | 7896 | 4772 | 60.435664% |
| C | 7896 | 169 | 2.140324% |
| D | 7896 | 296 | 3.748734% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7896 | 7896 | 22 | 22 | 0.28% | 0.28% |  |
| B | 7896 | 7896 | 4142 | 4142 | 52.46% | 52.46% |  |
| C | 7896 | 7896 | 142 | 142 | 1.80% | 1.80% |  |
| D | 7896 | 7896 | 237 | 237 | 3.00% | 3.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3921951 | 21328.39 | 881 | 862 | 183.8 |
| A | 13 | 248 | 50258 | 268.68 | 881 | 862 | 183.8 |
| A | 7 | 3 | 29366 | 155.04 | 881 | 862 | 183.8 |
| B | 3 | 112 | 11771138 | 95871.3 | 627 | 606 | 122.8 |
| B | 4 | 171 | 40058 | 321.34 | 627 | 606 | 122.8 |
| B | 0 | 190 | 34297 | 274.41 | 627 | 606 | 122.8 |
| C | 12 | 2 | 492134 | 2400.94 | 873 | 878 | 204.6 |
| C | 14 | 254 | 106199 | 514.74 | 873 | 878 | 204.6 |
| C | 12 | 250 | 14166 | 64.94 | 873 | 878 | 204.6 |
| D | 13 | 249 | 603027 | 2803.24 | 865 | 841 | 214.8 |
| D | 2 | 249 | 449466 | 2088.4 | 865 | 841 | 214.8 |
| D | 1 | 52 | 302605 | 1404.74 | 865 | 841 | 214.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

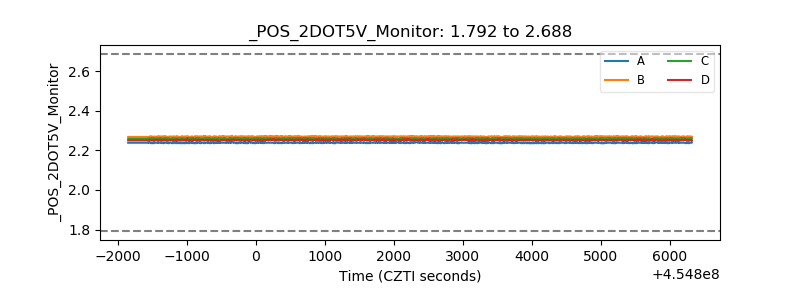

| +2.5 Volts monitor |  |

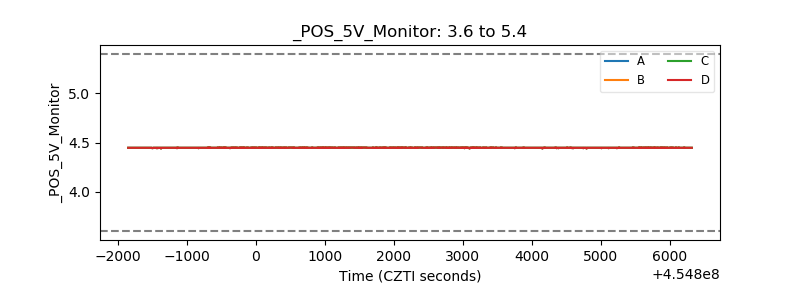

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
