| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_068T05_9000006280_46903cztM0_level2.fits | modeM0/AS1A13_068T05_9000006280_46903cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,152,005,760 | 199,272,960 |
| Size | 1.1 GB | 190.0 MB |
| Events in quadrant A | 12,061,347 | 1,357,306 |
| Events in quadrant B | 12,347,207 | 1,272,734 |
| Events in quadrant C | 6,023,953 | 1,368,812 |
| Events in quadrant D | 11,182,914 | 1,113,815 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 272 | 0 |
| B | 0 | 272 | 0 |
| C | 0 | 272 | 0 |
| D | 0 | 272 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44012 | 4 |
| B | 0 | 45880 | 4 |
| C | 0 | 27826 | 2 |
| D | 0 | 42553 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13311 | 389 | 2.922395% |
| B | 13310 | 1609 | 12.088655% |
| C | 13312 | 131 | 0.984075% |
| D | 13312 | 1671 | 12.552584% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14157 | 13312 | 19 | 19 | 0.13% | 0.14% |  |
| B | 14156 | 13311 | 947 | 947 | 6.69% | 7.11% |  |
| C | 14157 | 13314 | 27 | 27 | 0.19% | 0.20% |  |
| D | 14156 | 13312 | 1394 | 1394 | 9.85% | 10.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 6204705 | 20164.96 | 1478 | 1442 | 307.6 |
| A | 13 | 248 | 75920 | 242.11 | 1478 | 1442 | 307.6 |
| A | 7 | 3 | 54671 | 173.03 | 1478 | 1442 | 307.6 |
| B | 3 | 112 | 5869404 | 20419.34 | 1434 | 1385 | 287.4 |
| B | 5 | 255 | 212808 | 735.7 | 1434 | 1385 | 287.4 |
| B | 5 | 32 | 208248 | 719.84 | 1434 | 1385 | 287.4 |
| C | 12 | 250 | 194452 | 562.68 | 1465 | 1473 | 343.0 |
| C | 14 | 254 | 37353 | 104.62 | 1465 | 1473 | 343.0 |
| C | 12 | 2 | 28242 | 78.05 | 1465 | 1473 | 343.0 |
| D | 13 | 249 | 2766990 | 7909.04 | 1384 | 1341 | 349.7 |
| D | 2 | 249 | 2149570 | 6143.38 | 1384 | 1341 | 349.7 |
| D | 1 | 52 | 473130 | 1349.2 | 1384 | 1341 | 349.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

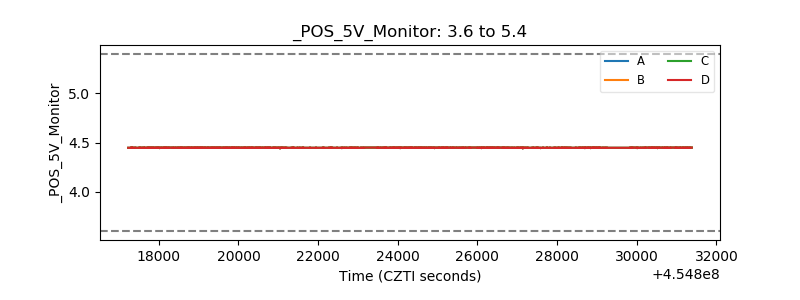

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
