| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_068T05_9000006280_46905cztM0_level2.fits | modeM0/AS1A13_068T05_9000006280_46905cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,142,345,600 | 381,611,520 |
| Size | 2.0 GB | 363.9 MB |
| Events in quadrant A | 23,042,984 | 2,573,723 |
| Events in quadrant B | 24,044,025 | 2,437,894 |
| Events in quadrant C | 11,373,281 | 2,598,034 |
| Events in quadrant D | 18,919,397 | 2,227,285 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 506 | 0 |
| B | 0 | 506 | 0 |
| C | 0 | 506 | 0 |
| D | 0 | 506 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 83834 | 3 |
| B | 0 | 88567 | 3 |
| C | 0 | 52212 | 3 |
| D | 0 | 73868 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 24940 | 871 | 3.492382% |
| B | 24942 | 3412 | 13.679737% |
| C | 24942 | 273 | 1.094539% |
| D | 24941 | 2317 | 9.289924% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 32097 | 24941 | 88 | 88 | 0.27% | 0.35% |  |
| B | 32098 | 24943 | 2023 | 2023 | 6.30% | 8.11% |  |
| C | 32098 | 24945 | 58 | 58 | 0.18% | 0.23% |  |
| D | 32098 | 24943 | 1868 | 1868 | 5.82% | 7.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 11845071 | 20557.14 | 2789 | 2727 | 576.1 |
| A | 13 | 248 | 327184 | 563.23 | 2789 | 2727 | 576.1 |
| A | 7 | 3 | 61316 | 101.7 | 2789 | 2727 | 576.1 |
| B | 3 | 112 | 12162970 | 22917.38 | 2689 | 2600 | 530.6 |
| B | 5 | 32 | 231315 | 431.04 | 2689 | 2600 | 530.6 |
| B | 5 | 255 | 220050 | 409.81 | 2689 | 2600 | 530.6 |
| C | 12 | 250 | 197668 | 302.65 | 2758 | 2770 | 644.0 |
| C | 14 | 254 | 159492 | 243.36 | 2758 | 2770 | 644.0 |
| C | 12 | 2 | 154650 | 235.85 | 2758 | 2770 | 644.0 |
| D | 13 | 249 | 3382489 | 5026.43 | 2658 | 2573 | 672.4 |
| D | 2 | 249 | 2329956 | 3461.16 | 2658 | 2573 | 672.4 |
| D | 1 | 52 | 1403533 | 2083.43 | 2658 | 2573 | 672.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

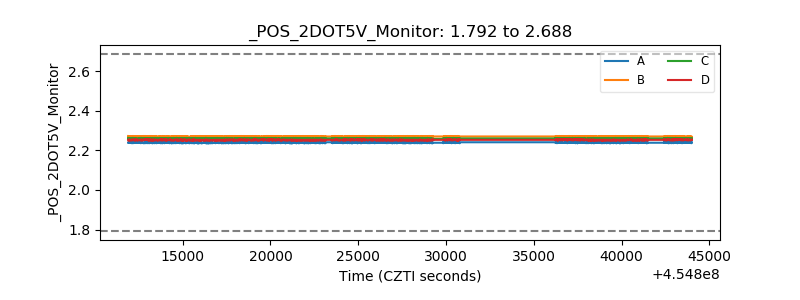

| +2.5 Volts monitor |  |

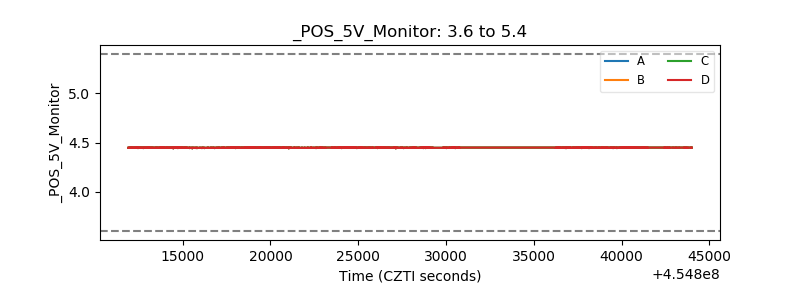

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
