| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006282_46909cztM0_level2.fits | modeM0/AS1A13_053T01_9000006282_46909cztM0_level2_quad_clean.evt |
| Size (bytes) | 659,422,080 | 86,973,120 |
| Size | 628.9 MB | 82.9 MB |
| Events in quadrant A | 5,692,004 | 651,366 |
| Events in quadrant B | 9,767,666 | 422,124 |
| Events in quadrant C | 2,545,805 | 653,130 |
| Events in quadrant D | 5,958,680 | 504,844 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20869 | 2 |
| B | 0 | 33009 | 1 |
| C | 0 | 11743 | 1 |
| D | 0 | 21621 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5751 | 264 | 4.590506% |
| B | 5751 | 2679 | 46.583203% |
| C | 5751 | 47 | 0.817249% |
| D | 5752 | 1104 | 19.193324% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6906 | 5751 | 35 | 35 | 0.51% | 0.61% |  |
| B | 6906 | 5751 | 2000 | 2000 | 28.96% | 34.78% |  |
| C | 6906 | 5751 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6907 | 5752 | 993 | 993 | 14.38% | 17.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2986223 | 21864.93 | 663 | 650 | 136.5 |
| A | 13 | 248 | 86043 | 625.38 | 663 | 650 | 136.5 |
| A | 15 | 254 | 39700 | 285.98 | 663 | 650 | 136.5 |
| B | 3 | 112 | 7222703 | 64275.78 | 572 | 555 | 112.4 |
| B | 0 | 200 | 117452 | 1040.36 | 572 | 555 | 112.4 |
| B | 15 | 36 | 103711 | 918.07 | 572 | 555 | 112.4 |
| C | 14 | 254 | 9717 | 59.67 | 647 | 649 | 152.0 |
| C | 12 | 250 | 9599 | 58.89 | 647 | 649 | 152.0 |
| C | 3 | 233 | 4671 | 26.46 | 647 | 649 | 152.0 |
| D | 12 | 0 | 2458527 | 16339.19 | 600 | 580 | 150.4 |
| D | 13 | 249 | 839868 | 5579.16 | 600 | 580 | 150.4 |
| D | 1 | 52 | 112555 | 744.35 | 600 | 580 | 150.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

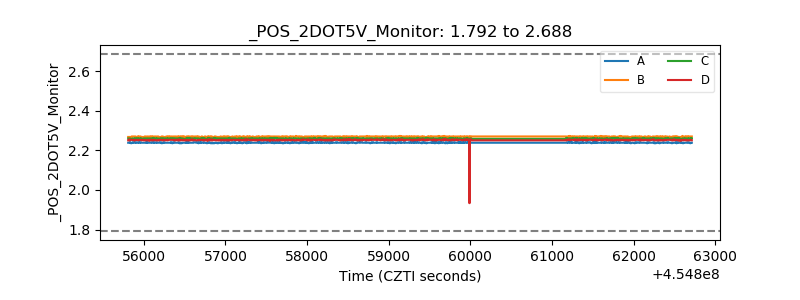

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
