| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006282_46918cztM0_level2.fits | modeM0/AS1A13_053T01_9000006282_46918cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,642,870,080 | 278,988,480 |
| Size | 1.5 GB | 266.1 MB |
| Events in quadrant A | 16,785,154 | 1,914,048 |
| Events in quadrant B | 22,195,062 | 1,713,399 |
| Events in quadrant C | 8,036,808 | 1,899,258 |
| Events in quadrant D | 12,365,555 | 1,640,493 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 378 | 0 |
| B | 0 | 378 | 0 |
| C | 0 | 378 | 0 |
| D | 0 | 378 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 61363 | 3 |
| B | 0 | 79125 | 3 |
| C | 0 | 38106 | 3 |
| D | 0 | 49977 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18556 | 572 | 3.082561% |
| B | 18557 | 3185 | 17.163335% |
| C | 18557 | 233 | 1.255591% |
| D | 18557 | 1400 | 7.544323% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19761 | 18557 | 22 | 22 | 0.11% | 0.12% |  |
| B | 19762 | 18558 | 1530 | 1530 | 7.74% | 8.24% |  |
| C | 19762 | 18557 | 7 | 7 | 0.04% | 0.04% |  |
| D | 19762 | 18558 | 1122 | 1122 | 5.68% | 6.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8713001 | 20591.48 | 2049 | 2002 | 423.0 |
| A | 13 | 248 | 88336 | 204.08 | 2049 | 2002 | 423.0 |
| A | 7 | 3 | 30955 | 68.44 | 2049 | 2002 | 423.0 |
| B | 3 | 112 | 13749477 | 35923.67 | 1956 | 1894 | 382.7 |
| B | 4 | 216 | 183722 | 475.13 | 1956 | 1894 | 382.7 |
| B | 5 | 32 | 127014 | 326.95 | 1956 | 1894 | 382.7 |
| C | 14 | 254 | 98388 | 201.79 | 2029 | 2031 | 477.5 |
| C | 3 | 233 | 18982 | 35.5 | 2029 | 2031 | 477.5 |
| C | 15 | 208 | 15195 | 27.57 | 2029 | 2031 | 477.5 |
| D | 10 | 181 | 2126386 | 4330.21 | 1967 | 1903 | 490.6 |
| D | 13 | 249 | 962589 | 1958.11 | 1967 | 1903 | 490.6 |
| D | 2 | 249 | 806329 | 1639.61 | 1967 | 1903 | 490.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

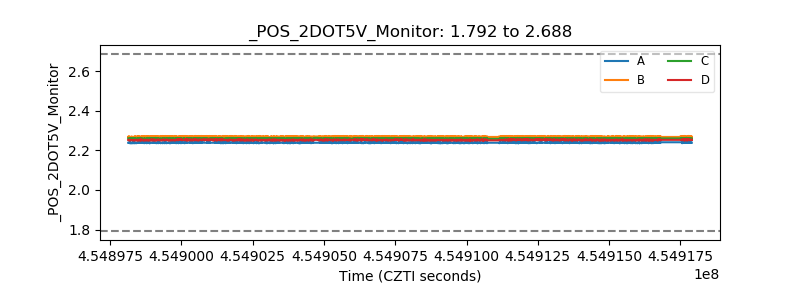

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
