| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T06_9000006284_46925cztM0_level2.fits | modeM0/AS1A13_074T06_9000006284_46925cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,001,920 | 91,632,960 |
| Size | 520.7 MB | 87.4 MB |
| Events in quadrant A | 5,749,597 | 635,905 |
| Events in quadrant B | 7,538,651 | 539,434 |
| Events in quadrant C | 2,787,111 | 621,163 |
| Events in quadrant D | 3,690,094 | 575,120 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21257 | 204 |
| B | 0 | 26956 | 558 |
| C | 0 | 12720 | 146 |
| D | 0 | 15099 | 130 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5769 | 224 | 3.882822% |
| B | 5701 | 1362 | 23.890546% |
| C | 5761 | 109 | 1.892033% |
| D | 5772 | 156 | 2.702703% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6969 | 5818 | 33 | 33 | 0.47% | 0.57% |  |
| B | 6969 | 5785 | 1106 | 1106 | 15.87% | 19.12% |  |
| C | 6970 | 5808 | 72 | 72 | 1.03% | 1.24% |  |
| D | 6970 | 5815 | 137 | 137 | 1.97% | 2.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3167146 | 23055.2 | 657 | 646 | 137.3 |
| A | 7 | 3 | 17722 | 124.33 | 657 | 646 | 137.3 |
| A | 13 | 248 | 9387 | 63.64 | 657 | 646 | 137.3 |
| B | 3 | 112 | 4769078 | 39397.98 | 614 | 597 | 121.0 |
| B | 5 | 172 | 113516 | 932.96 | 614 | 597 | 121.0 |
| B | 0 | 198 | 51390 | 419.66 | 614 | 597 | 121.0 |
| C | 14 | 254 | 258051 | 1703.23 | 636 | 639 | 151.1 |
| C | 15 | 208 | 14284 | 90.29 | 636 | 639 | 151.1 |
| C | 12 | 249 | 11232 | 70.09 | 636 | 639 | 151.1 |
| D | 1 | 52 | 500604 | 3087.96 | 638 | 617 | 161.9 |
| D | 12 | 233 | 121414 | 746.05 | 638 | 617 | 161.9 |
| D | 11 | 192 | 112384 | 690.28 | 638 | 617 | 161.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

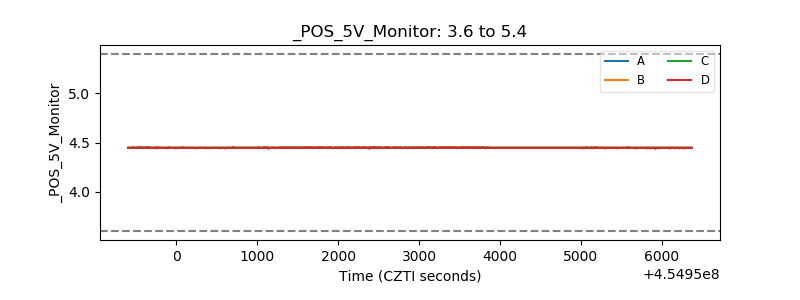

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
