| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T06_9000006284_46927cztM0_level2.fits | modeM0/AS1A13_074T06_9000006284_46927cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,265,920 | 99,400,320 |
| Size | 526.7 MB | 94.8 MB |
| Events in quadrant A | 6,139,927 | 675,693 |
| Events in quadrant B | 5,851,334 | 641,640 |
| Events in quadrant C | 2,750,391 | 663,638 |
| Events in quadrant D | 5,206,817 | 583,118 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22474 | 1 |
| B | 0 | 21695 | 1 |
| C | 0 | 13054 | 1 |
| D | 0 | 19960 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6386 | 170 | 2.662073% |
| B | 6387 | 685 | 10.724910% |
| C | 6387 | 9 | 0.140911% |
| D | 6387 | 443 | 6.935964% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7036 | 6387 | 6 | 6 | 0.09% | 0.09% |  |
| B | 7037 | 6388 | 585 | 585 | 8.31% | 9.16% |  |
| C | 7037 | 6388 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7037 | 6388 | 408 | 408 | 5.80% | 6.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3344463 | 22601.99 | 705 | 691 | 147.9 |
| A | 9 | 191 | 21031 | 137.49 | 705 | 691 | 147.9 |
| A | 15 | 254 | 15237 | 98.32 | 705 | 691 | 147.9 |
| B | 3 | 112 | 2711637 | 19677.39 | 685 | 662 | 137.8 |
| B | 4 | 171 | 135915 | 981.72 | 685 | 662 | 137.8 |
| B | 5 | 32 | 90039 | 648.74 | 685 | 662 | 137.8 |
| C | 14 | 254 | 47724 | 286.93 | 688 | 690 | 163.9 |
| C | 14 | 67 | 12631 | 72.84 | 688 | 690 | 163.9 |
| C | 13 | 61 | 4570 | 23.67 | 688 | 690 | 163.9 |
| D | 1 | 52 | 1537695 | 9121.85 | 668 | 646 | 168.5 |
| D | 13 | 249 | 257655 | 1525.26 | 668 | 646 | 168.5 |
| D | 10 | 181 | 217099 | 1284.57 | 668 | 646 | 168.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

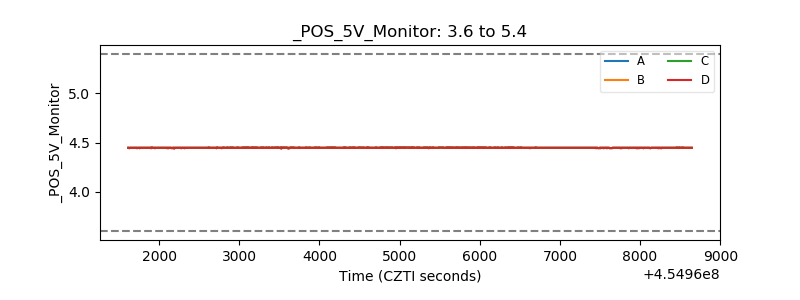

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
