| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_077T01_9000006286_46938cztM0_level2.fits | modeM0/AS1A13_077T01_9000006286_46938cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,713,280 | 96,240,960 |
| Size | 547.1 MB | 91.8 MB |
| Events in quadrant A | 6,118,873 | 656,409 |
| Events in quadrant B | 7,608,902 | 605,368 |
| Events in quadrant C | 3,091,350 | 652,160 |
| Events in quadrant D | 3,963,733 | 589,716 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22463 | 1 |
| B | 0 | 26736 | 1 |
| C | 0 | 13311 | 1 |
| D | 0 | 15748 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5869 | 270 | 4.600443% |
| B | 5870 | 1066 | 18.160136% |
| C | 5870 | 134 | 2.282794% |
| D | 5870 | 303 | 5.161840% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7009 | 5869 | 22 | 22 | 0.31% | 0.37% |  |
| B | 7009 | 5869 | 900 | 900 | 12.84% | 15.33% |  |
| C | 7010 | 5870 | 60 | 60 | 0.86% | 1.02% |  |
| D | 7010 | 5870 | 172 | 172 | 2.45% | 2.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3373316 | 24103.12 | 678 | 664 | 139.9 |
| A | 9 | 191 | 57349 | 405.11 | 678 | 664 | 139.9 |
| A | 13 | 248 | 19980 | 138.04 | 678 | 664 | 139.9 |
| B | 3 | 112 | 4627420 | 35931.77 | 649 | 630 | 128.8 |
| B | 4 | 171 | 120904 | 934.05 | 649 | 630 | 128.8 |
| B | 5 | 172 | 82205 | 633.51 | 649 | 630 | 128.8 |
| C | 14 | 254 | 271695 | 1701.56 | 670 | 673 | 159.3 |
| C | 12 | 2 | 162267 | 1014.53 | 670 | 673 | 159.3 |
| C | 9 | 54 | 16621 | 100.13 | 670 | 673 | 159.3 |
| D | 1 | 52 | 563031 | 3362.78 | 666 | 646 | 167.2 |
| D | 13 | 249 | 277504 | 1655.47 | 666 | 646 | 167.2 |
| D | 12 | 233 | 185906 | 1107.76 | 666 | 646 | 167.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

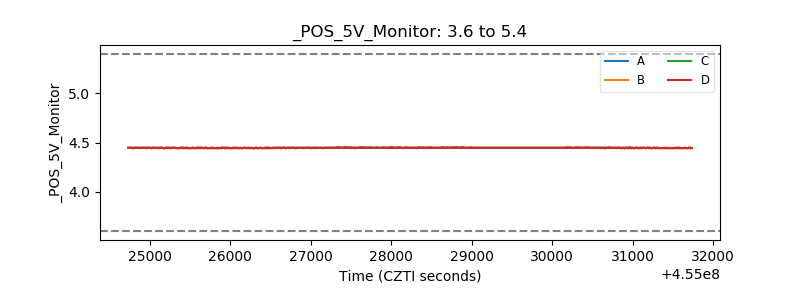

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
