| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_077T01_9000006286_46950cztM0_level2.fits | modeM0/AS1A13_077T01_9000006286_46950cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,707,513,920 | 429,445,440 |
| Size | 2.5 GB | 409.6 MB |
| Events in quadrant A | 27,877,910 | 2,931,675 |
| Events in quadrant B | 32,918,459 | 2,658,950 |
| Events in quadrant C | 15,553,198 | 2,890,731 |
| Events in quadrant D | 21,681,372 | 2,560,555 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 580 | 0 |
| B | 0 | 580 | 0 |
| C | 0 | 580 | 0 |
| D | 0 | 580 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102855 | 5 |
| B | 0 | 117681 | 5 |
| C | 0 | 66489 | 5 |
| D | 0 | 83912 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 28490 | 1089 | 3.822394% |
| B | 28491 | 5218 | 18.314555% |
| C | 28491 | 986 | 3.460742% |
| D | 28491 | 2258 | 7.925310% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 31604 | 28490 | 34 | 34 | 0.11% | 0.12% |  |
| B | 31605 | 28490 | 3809 | 3809 | 12.05% | 13.37% |  |
| C | 31605 | 28490 | 613 | 613 | 1.94% | 2.15% |  |
| D | 31605 | 28490 | 1861 | 1861 | 5.89% | 6.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 15135544 | 22726.97 | 3209 | 3139 | 665.8 |
| A | 15 | 235 | 148302 | 218.02 | 3209 | 3139 | 665.8 |
| A | 7 | 3 | 76756 | 110.56 | 3209 | 3139 | 665.8 |
| B | 3 | 112 | 19072449 | 32083.84 | 3038 | 2943 | 594.4 |
| B | 5 | 32 | 471491 | 788.32 | 3038 | 2943 | 594.4 |
| B | 5 | 172 | 432323 | 722.42 | 3038 | 2943 | 594.4 |
| C | 12 | 2 | 1909904 | 2561.88 | 3138 | 3152 | 744.3 |
| C | 14 | 254 | 1286073 | 1723.71 | 3138 | 3152 | 744.3 |
| C | 0 | 207 | 28190 | 33.64 | 3138 | 3152 | 744.3 |
| D | 1 | 52 | 6116091 | 7867.1 | 3097 | 3004 | 777.0 |
| D | 13 | 249 | 2364473 | 3039.04 | 3097 | 3004 | 777.0 |
| D | 1 | 47 | 303332 | 386.5 | 3097 | 3004 | 777.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

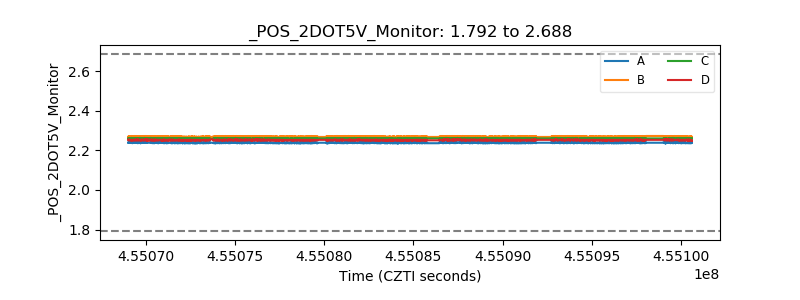

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
